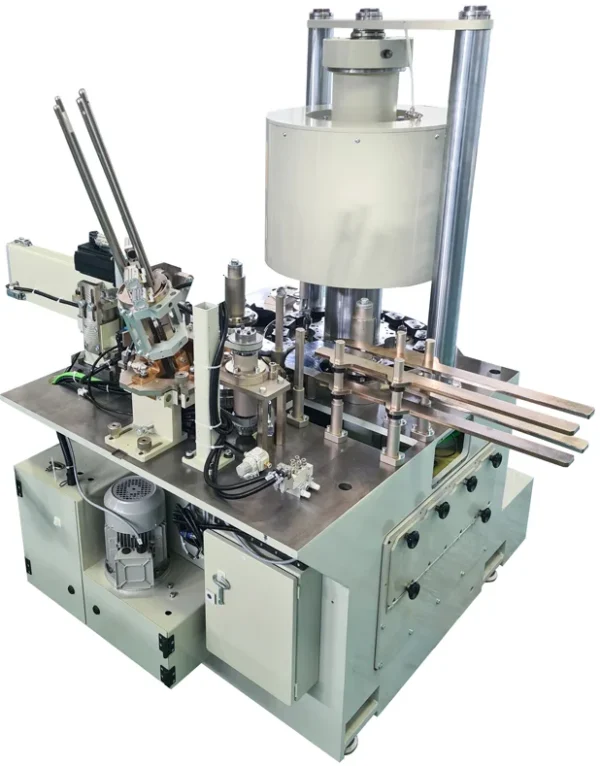

The AT series closes the bottom end on the body line. Each head carries a first and a second operation roll that act in sequence on the rotating can, so seam parameters are tuned by changing the roll profile rather than the machine.

What it does on the line

Flanged bodies and ends meet at the seaming heads under a no can, no end control. Chucks and base plates rotate positively on conical roller bearings with monobloc seaming levers; the main motor is driven by an electronic frequency converter and the machine is run from a 17-inch touch panel.

Design features

• Seams open-top and easy-open ends to previously flanged can bodies.
• 3, 4, 6, 8 or 12 seaming heads, each with a first and a second operation roll.
• Seam optimization by changing the roll profile.
• Handles SR and DR tinplate from 0.13 mm (0.12 mm on the 52 to 105 mm models).
• Chucks and base plates with positive rotation; idle rolls on conical roller bearings; monobloc seaming levers.
• End infeed control: no can, no end.
• PLC control with 17-inch touch panel.
• Standard commercial components; common wear parts stocked by Cevolani.

Technical data

Catalog figures published by Cevolani Italia. They describe nominal machine capacity, not the output of an integrated line. Imperial equivalents and configuration options on request.

Talk to Crestpack

Crestpack is Cevolani’s counterpart in North America, run by Eurotecsa International LLC in McAllen, Texas. One person handles the technical conversation, the quote and the follow-through. Request a line performance assessment or send us your can format.
