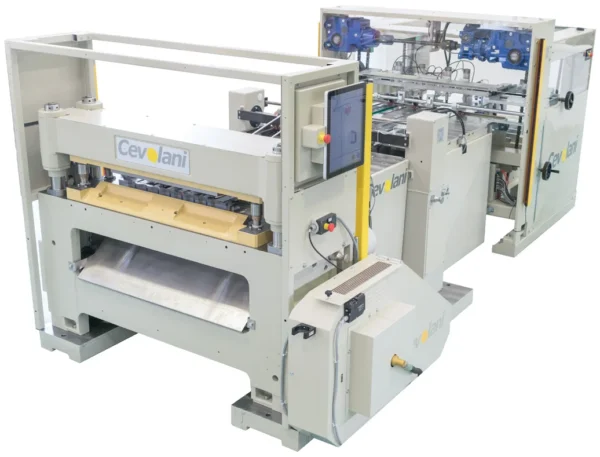

The CG 422 is the first machine of a Cevolani ends line. It picks sheets from the pallet, trims them in rigid cast-iron cutter holders and delivers scrolled strips, single or double row, to the press.

What it does on the line

Four suction cups lift the sheet; cams with adjustable timing feed it positively and linearly onto the first table without scratches even at high speed. Electronic counters and a double-sheet detector eject doubles automatically. Gears run in an oil bath outside the machine for a fast, simple size change.

Design features

• Extremely rigid cast-iron cutter holders for sheet trimming.
• Fixed-pitch sheet calibrator bars for high precision, also with printed pre-scroll sheets.
• Automatic lubrication; separate electrical cabinet with PLC control; speed change by inverter-driven synchronous motor.
• Electronic sheet counters with automatic double-sheet ejection.
• Gears in oil bath, external to the machine, for rapid and simple size change.
• Optic safety barrier; idle-roller loading conveyor.
• Built to Cevolani’s standards of durability, so used machines keep their value; common wear parts stocked.

Technical data

Catalog figures published by Cevolani Italia. They describe nominal machine capacity, not the output of an integrated line. Imperial equivalents and configuration options on request.

Talk to Crestpack

Crestpack is Cevolani’s counterpart in North America, run by Eurotecsa International LLC in McAllen, Texas. One person handles the technical conversation, the quote and the follow-through. Request an ends line audit or send us your end diameter and rate.
