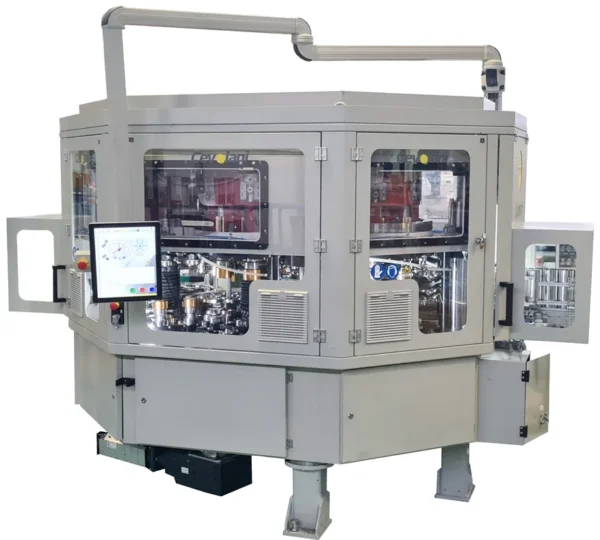

The FAA 575 GL brings the Combican concept to large and mixed formats: paint, chemical and industrial cans, big food cans and aerosols on the same machine, with tinplate up to 0.30 mm.

What it does on the line

Each body is necked and flanged with carbide tooling, then bottom-seamed and dome-seamed by first and second operation rolls while the can rotates on its axis. Ends are fed automatically with phase control and a no can, no end stop.

Design features

• Four chucks per station, sized for diameters from 45 to 200 mm.
• Necking on one or both ends with carbide dies; positive ejection from the tooling.
• Flanging of the whole can edge at once; ceramic rollers and SPIE flanging on request.
• Seaming with first and second operation rolls for consistent seam values.
• Rapid size changeover; automatic reduced standby speed during line stops.
• PLC control with operator display; centralized lubrication with oil recovery.
• Standard commercial components; common wear parts stocked by Cevolani.

Technical data

Catalog figures published by Cevolani Italia. They describe nominal machine capacity, not the output of an integrated line. Imperial equivalents and configuration options on request.

Talk to Crestpack

Crestpack is Cevolani’s counterpart in North America, run by Eurotecsa International LLC in McAllen, Texas. One person handles the technical conversation, the quote and the follow-through. Request a line performance assessment or send us your can format.
