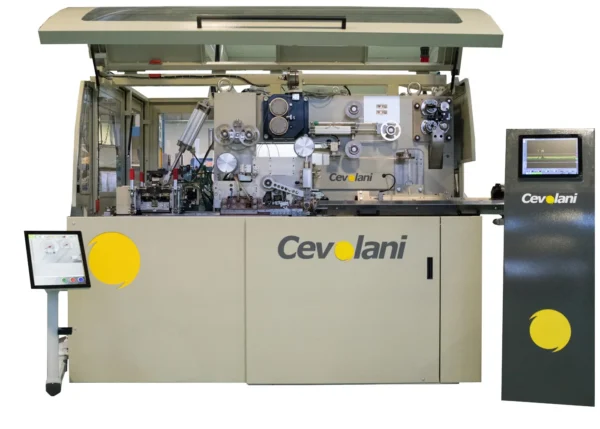

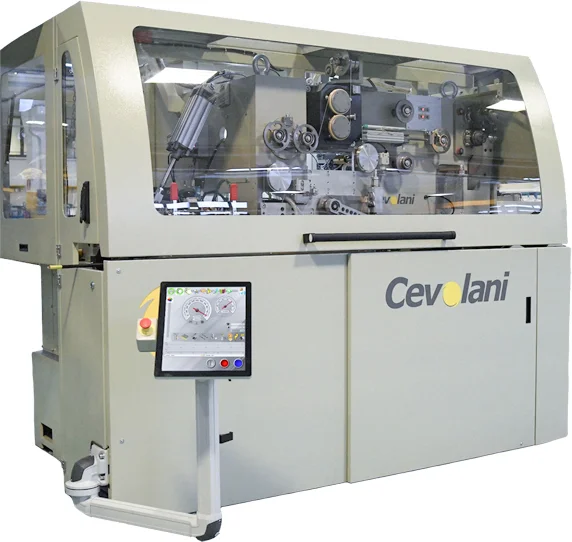

The CBW series is the side-seam welder of a Cevolani three-piece line. The CBW 2280 holds full welding speed on short bodies down to 50 mm and runs tinplate from 0.10 mm; the CBW 530 covers large diameters up to 189 mm.

What it does on the line

Blanks arrive from the slitter into an automatically loaded magazine, are rounded in an adjustable calender, fed to the welding rollers with a positive positioning system and welded with copper wire. The WMC 573 monitor measures every weld point and the ejection system removes faulty bodies between the welder and the oven.

Cevolani’s own recording: CBW 2280, 72.8 x 69 mm single body, 800 cpm.

Design features

• Blank magazine fed by an automatic loading system; double sheets removed without stopping.
• All movements independent, driven by brushless motors under PLC control; parameter storage for each size.
• Adjustable calender for a perfect can body roundness.
• Short wire run that removes the causes of jams or breakage; new-generation pneumatic wire tensioner.
• Motor-driven roller cage with ceramic ring for gauging the can bodies.
• Dedicated closed-circuit cooling; welding arm with mercury-free rollers.
• Static frequency converter: sinusoidal or square-wave welding forms, low energy consumption, simple set-up.
• WMC 573 monitor measures, analyzes and displays each weld point on every can; faulty cans ejected before the oven.

Technical data

Catalog figures published by Cevolani Italia. They describe nominal machine capacity, not the output of an integrated line. Imperial equivalents and configuration options on request.

Talk to Crestpack

Crestpack is Cevolani’s counterpart in North America, run by Eurotecsa International LLC in McAllen, Texas. One person handles the technical conversation, the quote and the follow-through. Request a line performance assessment or send us your can format.
