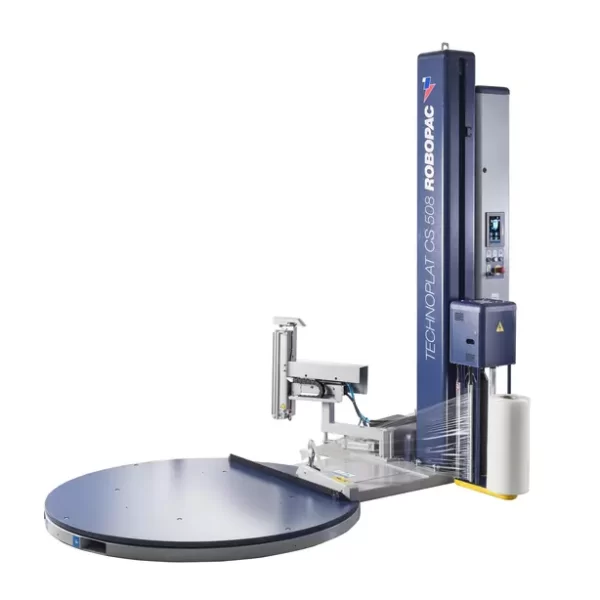

The Technoplat CS and CW are automatic wrapping machines and represent the innovative solution for wrapping the pallet completely automatically. The machine has the Clamp and Film Cutting Group with applicator, in the CS version, and sealer in the CW version that ensure the hooking, cutting, and coating or sealing of the film glue that remains perfectly adherent to the pallet.
| Table diameter | mm | 1650 std. 1800 opt. |
| Maximum capacity | kg | 2000 std. 2500 opt. |
| Table rotation speed | rpm | 5÷12 |
| Car up-down speed | m/min | 1.5÷5.5 |
| Maximum pallet dimensions (LxW) | mm | 1000×1200 std. 1200×1200 opt. |
| Maximum product height | mm | 2200 std. 2400/2800/3100 opt. |
| Cart type | FR, PDS, PVS | |
| Film tensioner | adjustable from the panel | |
| Pre-stretched film | n.a. (FR), up to 250% std (PDS), variable 150-400% (PVS) | |
| Fork placement | front and rear | |
| Supply voltage | V | 230V 1Ph |
| Power frequency | Hz | 50/60 |
| Installed power | kW | 2.1÷2.9 |
| Maximum coil dimensions | mm | 500×300 |
| Maximum coil weight | kg | 20 |
| Film thickness | μm | 17÷35 |
