OTHALA RT

Viable, reliable, high performance, the legacy you leave behind!

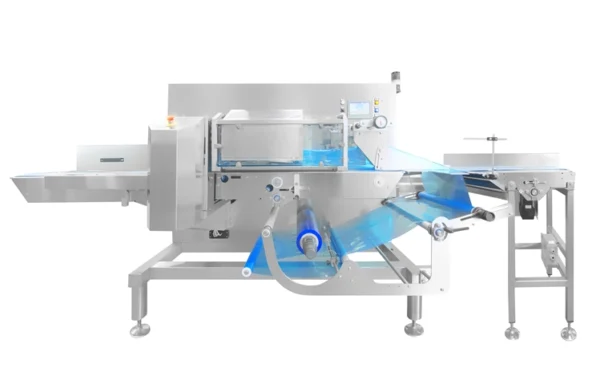

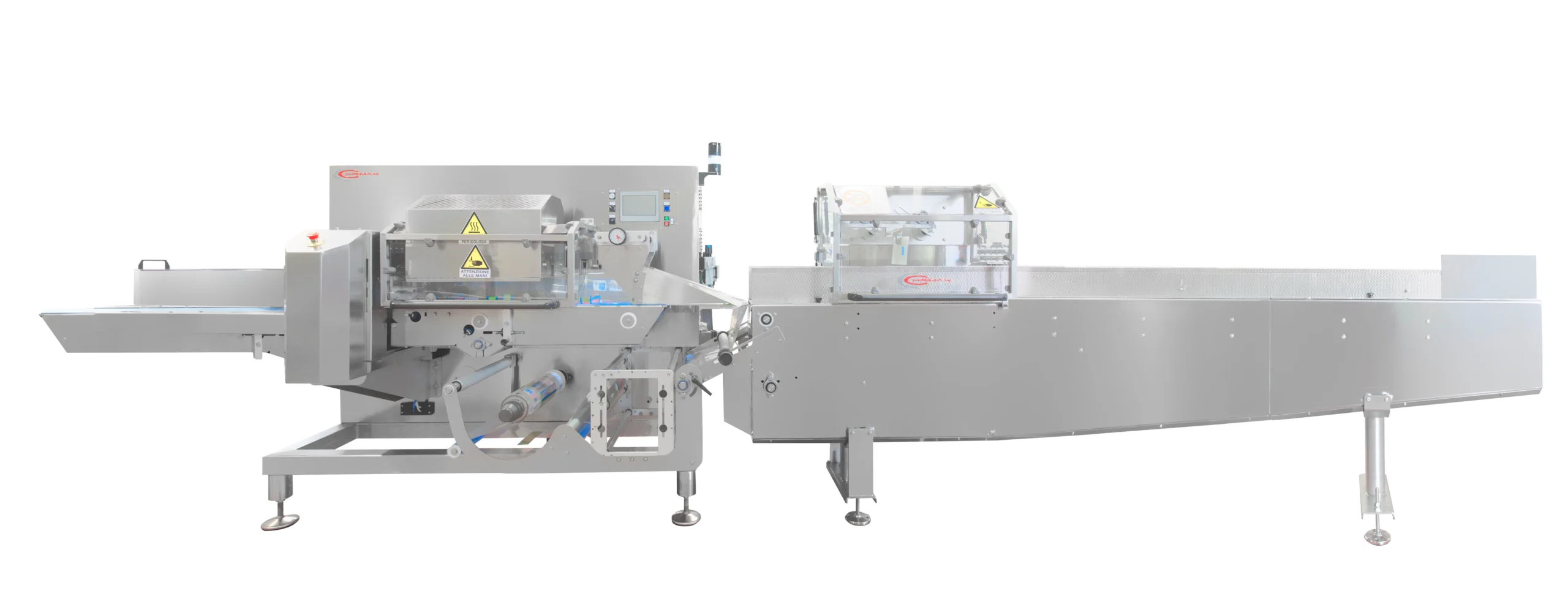

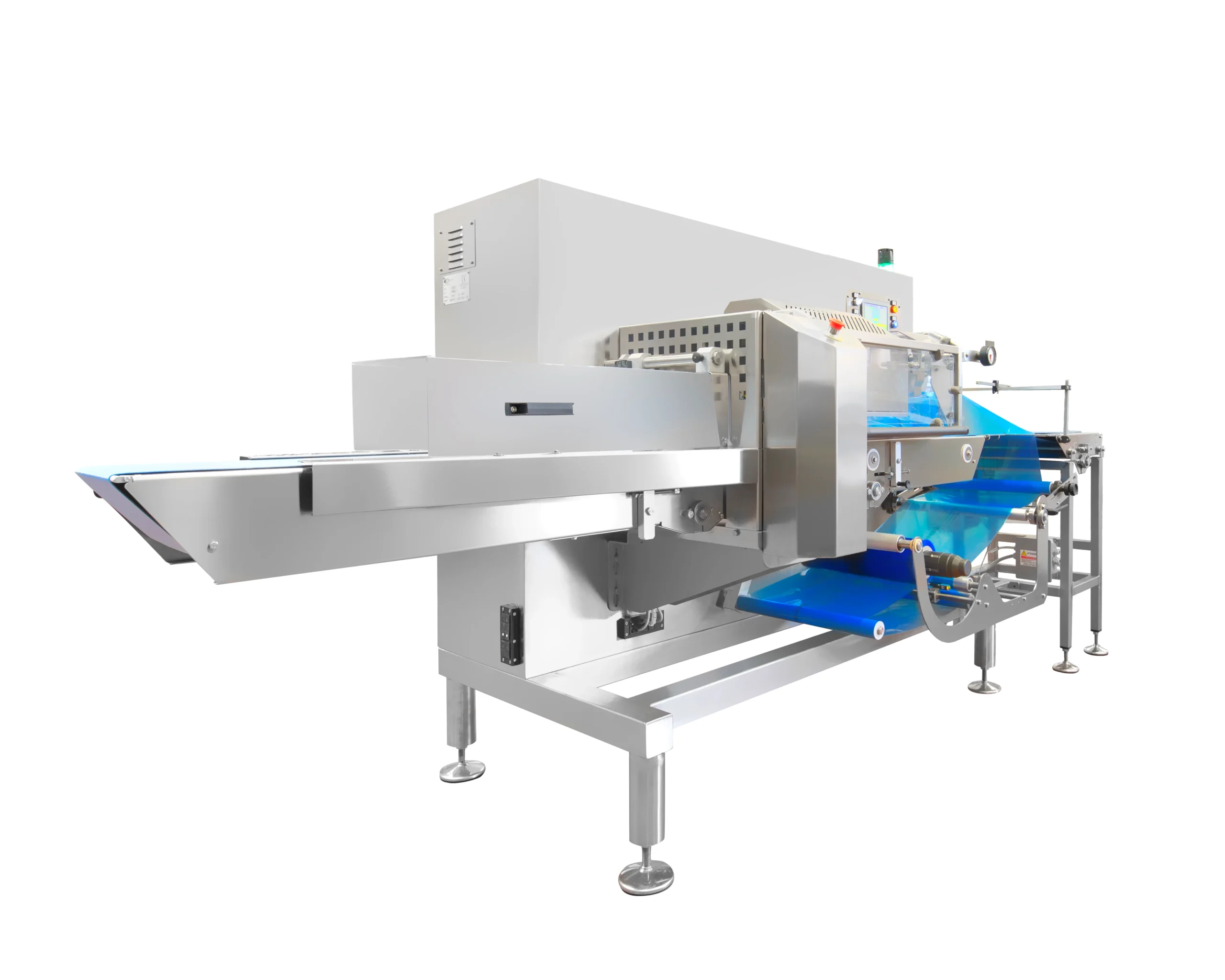

OTHALA RT is the Rotary Top Seal version of our HFFS packaging machines with the film reel at the bottom of the machine and longitudinal welding at the top of the container, perfect for products that are difficult to transport, as it allows the product to enter the machine already resting on the film. Built on a cantilever structure and easy access for the operator carrying out the daily packaging routine.

The drive mechanisms are placed separately from the packaging process. This design concept prevents processing and product waste from ending up in the drive mechanisms. This reduces cleaning times, improves component life and ensures the best hygienic conditions and easy access for maintenance.

The robustness, ease of handling, reliability, versatility and flexibility ensure perfect adaptability of the machine to the packaging needs of each application.

Sophisticated yet easy-to-use electronics manage all machine functions via an external touch screen interface. The product is fed through a conveyor belt, already supplied with the machine.

The Othala can be integrated with any automatic loading equipment, to achieve very high production results. The machine is manufactured in accordance with the current CE Machinery Directive and for use in food handling environments.

Main features

  • Left version (products flow from right to left).
  • Cantilever structure made of AISI304 stainless steel.
  • 7” color touch screen interface
  • Single spool holder, air expansion
  • Maximum reel width 520 mm

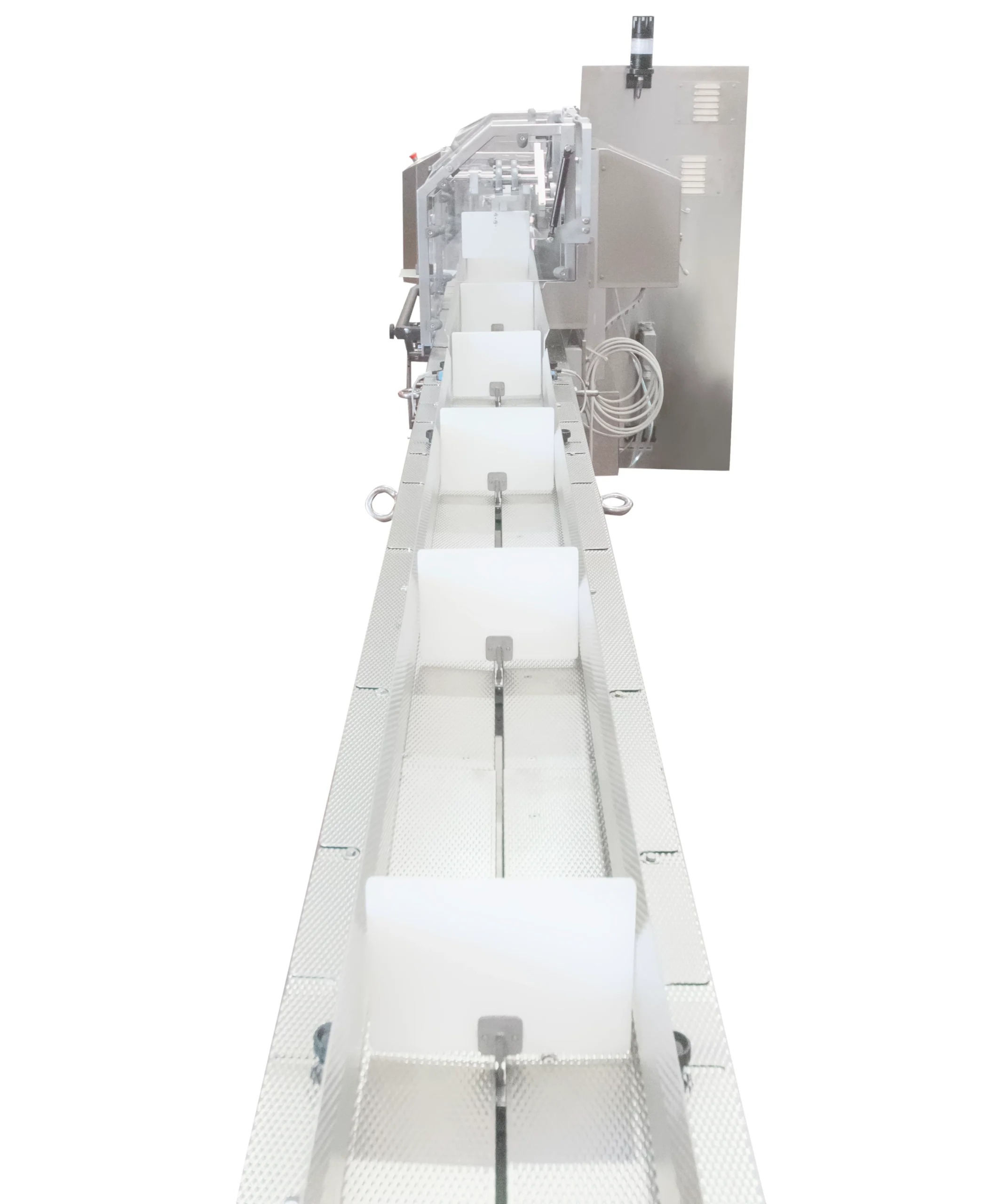

  • Integrated 1000mm infeed conveyor with controlled product handling
  • 3 pairs of welding wheels (1 cold for pulling film, 1 hot for welding film, 1 for folding film)
  • Automatic opening of the welding wheels when the machine stops
  • Integrated output conveyor equipped with a belt compatible with food contact.
  • Stainless steel adjustable film former
  • Rotary cutting and sealing unit

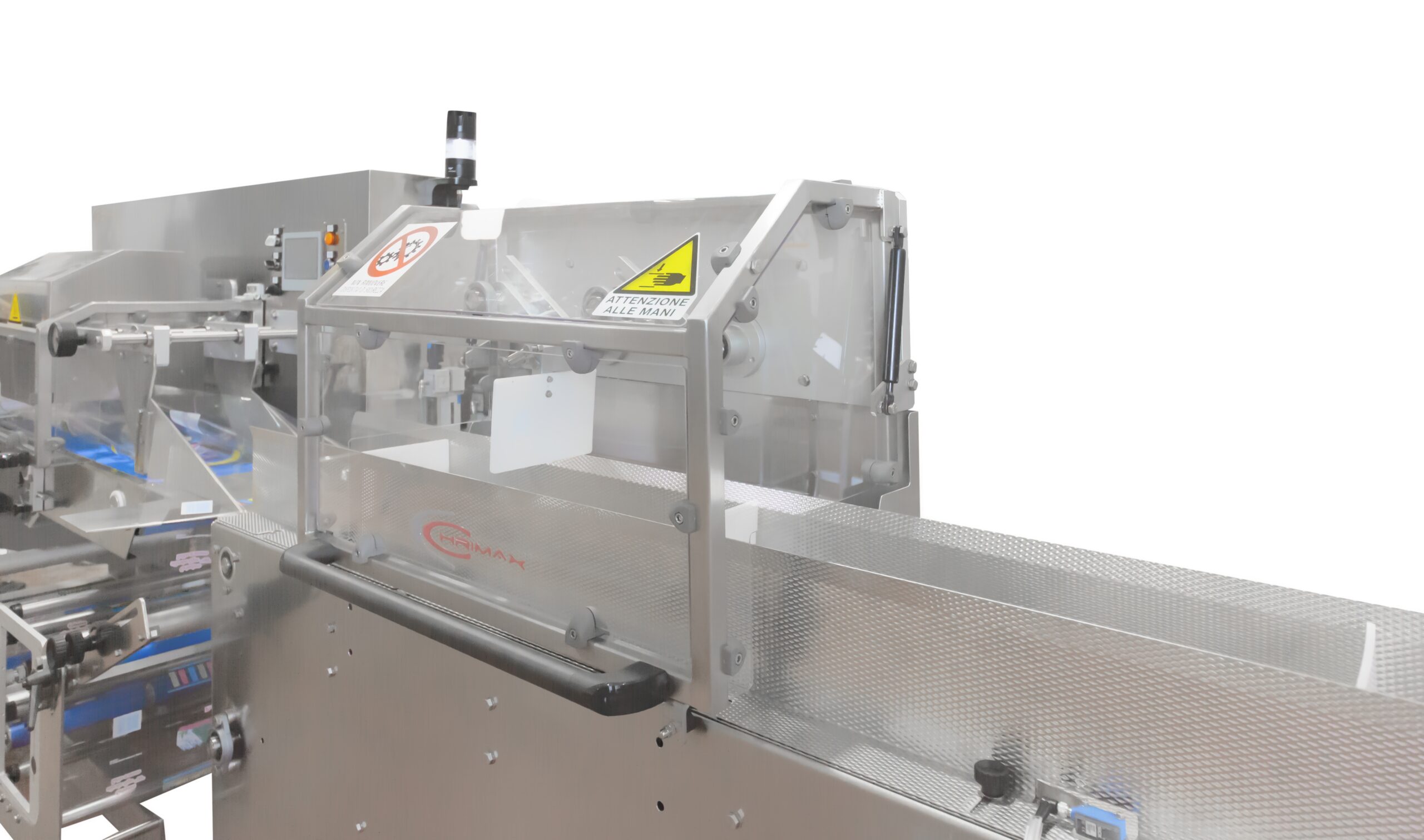

  • Transparent polycarbonate safety protectors, openable and equipped with safety sensors.
  • Printer ready signal, manageable from the touch screen and storable to create a recipe program
  • Electronics located inside the machine frame, easily accessible and protected from humidity and infiltration.
  • Power supply: three-phase 400 + Neutral + Ground – 50Hz



Main options

  • Correct version
  • Eurohole
  • Preheating system
  • PE film welding system
  • Trimming excess film
  • Micrometric dosage of liquids (alcohol, anti-mold)
  • Gas inflation
  • Gas analyzer
  • Batch, code and date printer/labeler
  • No product, no bag
  • Automatic rejection of packages that do not present complaints
  • “Out of phase” function
  • Registered wrapper to automatically adjust package length.
  • Automatic feeding systems.
  • Structure on wheels
  • Teleservice device
