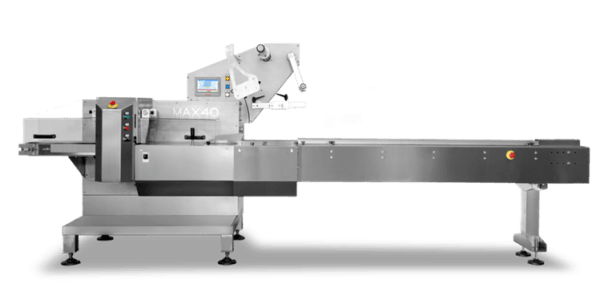

Max 40

Robust support structure, compact size. Excellent functionality at a competitive price!

The MAX40 packaging machine is an electronic machine equipped with 3 servo axes controlled by intelligent controllers. Ideal for small and medium-sized products (stickers, gadgets, wafers, snacks, etc.), the Max40 is designed to meet the needs of both the food and non-food industries. It can package rigid products of any shape or size. This rotary sealer packaging machine is equipped with a state-of-the-art PLC with temperature control, integrated diagnostics, memory registration of different packaging formats and multi-function and multi-lingual touch screen; The structure, built entirely in stainless steel, allows this machine to be easily used in humid environments: the electronics are located inside the machine frame, where it can be easily accessed and protected against humidity and infiltration. Various accessories can be added to the basic model of the machine. The machine is manufactured in compliance with current CE standards and regulations for use in food handling environments.

Technical sheet

  • 7″ touch screen interface Ethernet + USB port PT070-WST4B-F1R1
  • Weight 700 kg
  • Cutting/sealing functionality with rotary sealers. Maximum rotation and power. 160 mm, maximum sealant dimensions 250 mm x 32 mm thickness. Motor SD1261/CAN.331- 45-135VDC + variator 450 1800 / motovario reducer NMRV050 i=10 – F.&14, flange 120 mm
  • Cartridge resistors L250 D 15 220V 700W
  • Type J thermocouple probes
  • Knife and anvil 250x20x4.9

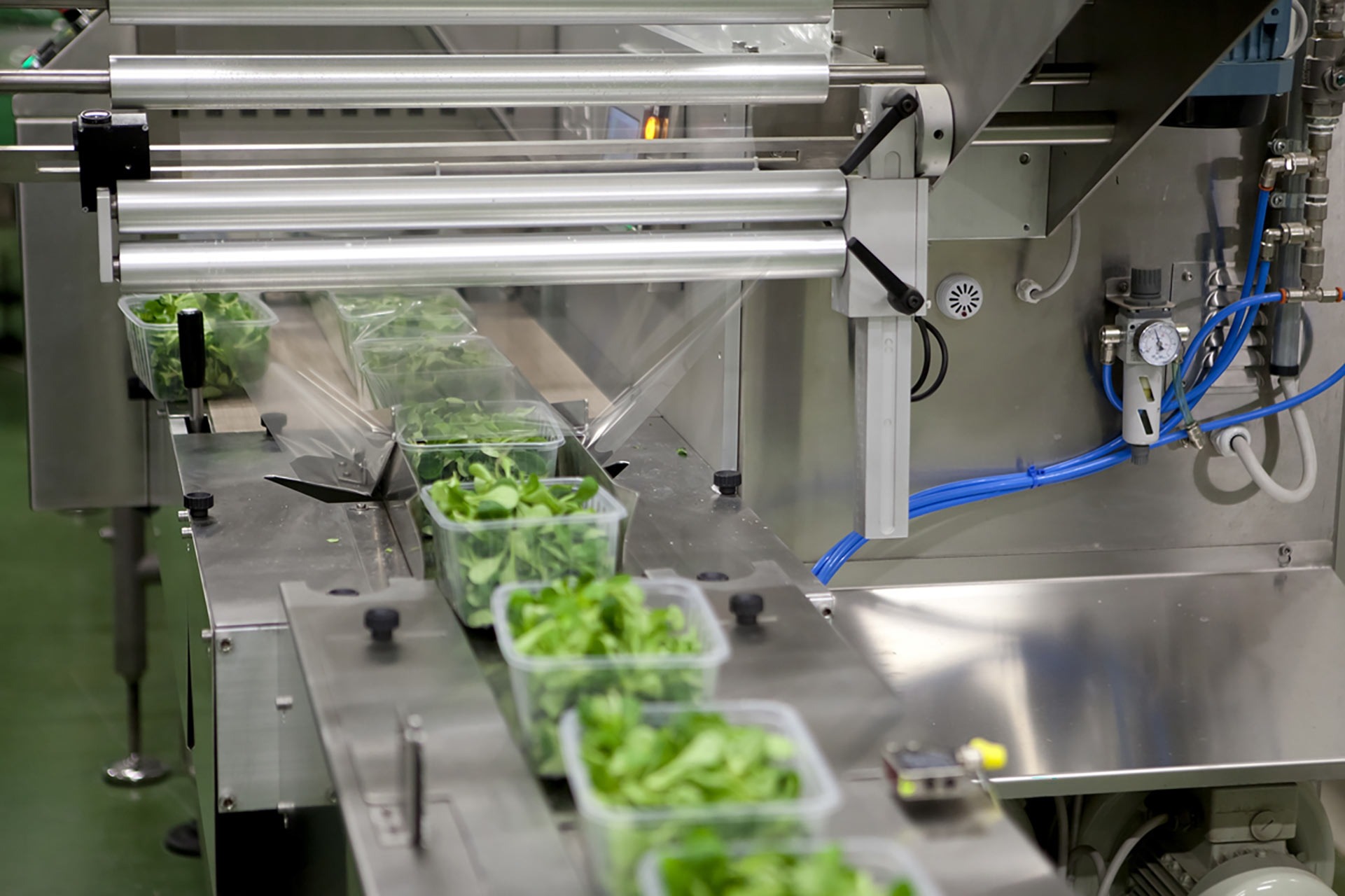

  • Feed conveyor: structure, protective panels and side guides in stainless steel. Length 2000, heavy duty slatted chain with hostaform locking latches. Motor SD1261/CAN.331- 45-135VDC + variator 450 1800 / motovario reducer NMRV050 i=10 – F. &14, flange 120 mm. Product presence sensor SICK/Datalogic/Pepperl+Fuchs
  • 3 pairs of sealing wheels, one of which is heated by a 350W 110V resistance (Omega). Motor SD1261/CAN.331- 45-135VDC + variator 450 1800 / motovario reducer NMRV050 i=10

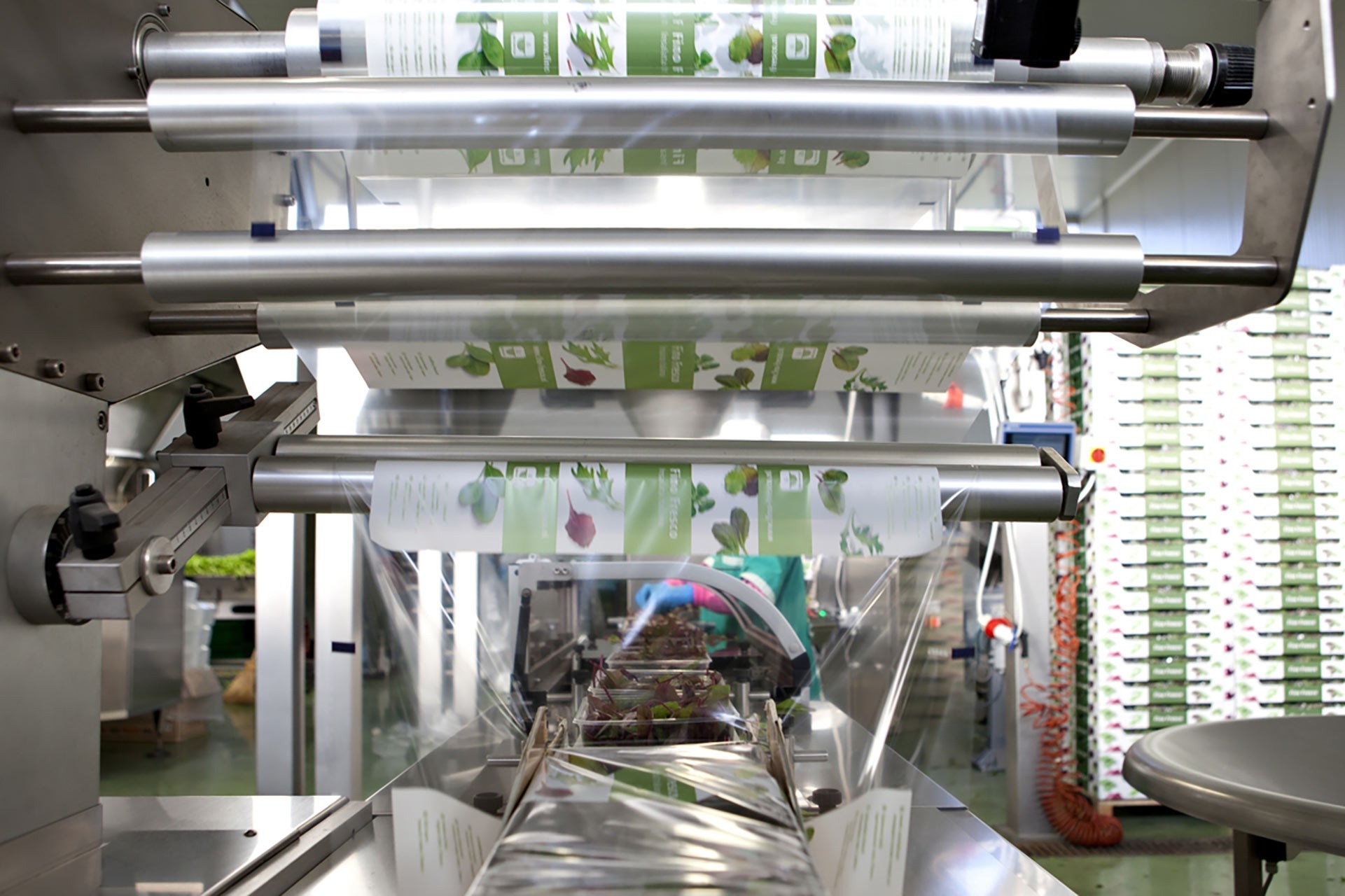

  • Single axis coil holder, useful width 600mm, with simple coil replacement system, independent motorization NMRV040 i=15 + 0.37kw motor
  • Fixed fixed stainless steel former

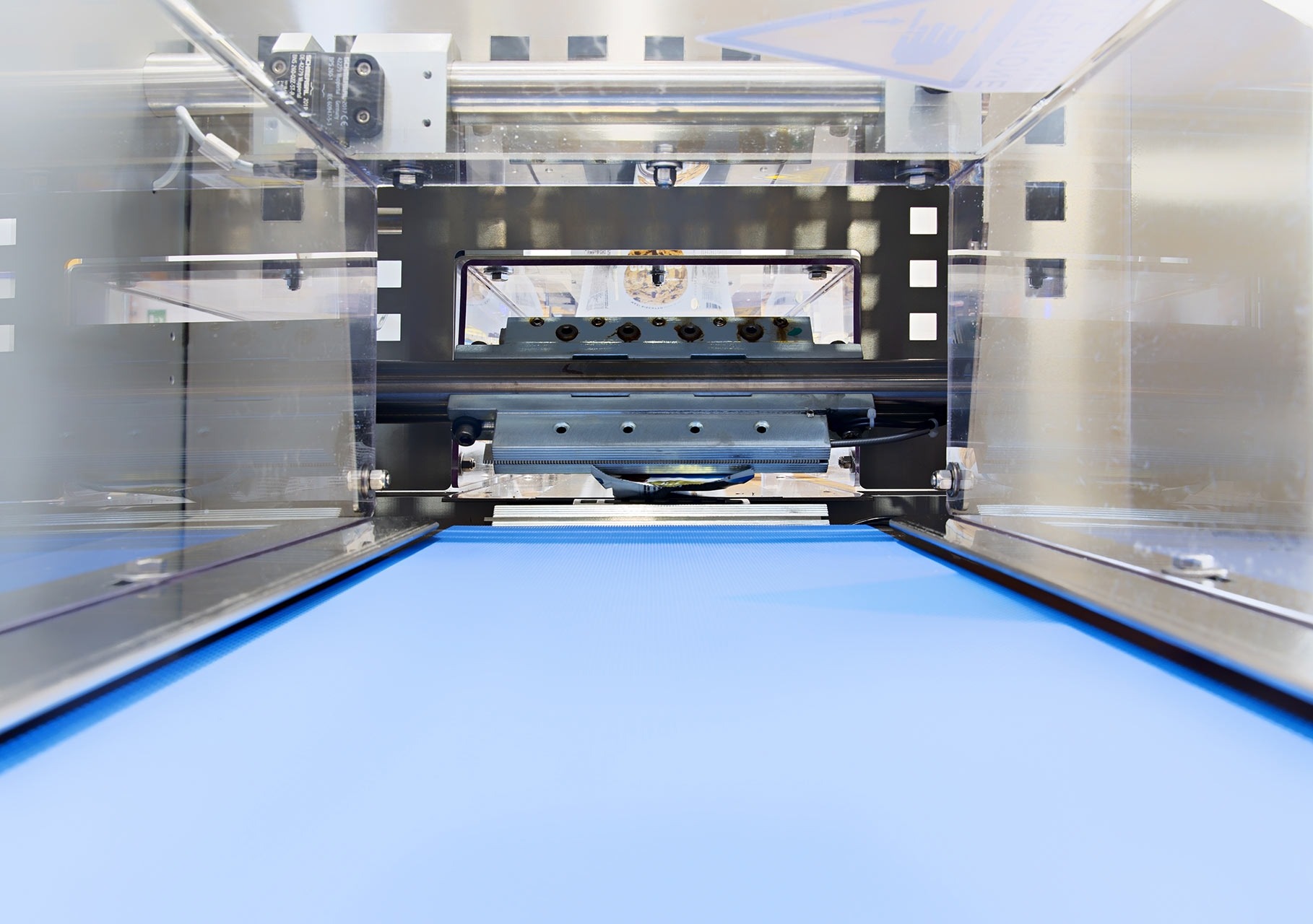

  • Exit belt in FDA GRADE material, with independent motorization by drum motor mod. 80LP RL 280 EL 286 speed 0.59 m/s IP66
  • SICK/Datalogic/Pepperl+Fuchs printed mark sensor
  • Power supply: 400 + Neutral – 50Hz
  • Consumption: 8 Amps – 6 Bar (continuous)
  • Automatic opening of the sealing wheels
  • Standard reel dimensions: width 600 mm, diameter 380 mm
  • Camozzi pneumatic components
  • CMZ electronic and motor components
  • Minimum/maximum product dimensions: 30-150mm length; 15-120mm wide; 5-50mm height
  • Openable polycarbonate protection guards equipped with safety microswitches
  • NGI anti-vibration support feet in stainless steel.
