Main technical characteristics

• Right/left version
• Cantilever structure in AISI 304 stainless steel with rounded corners

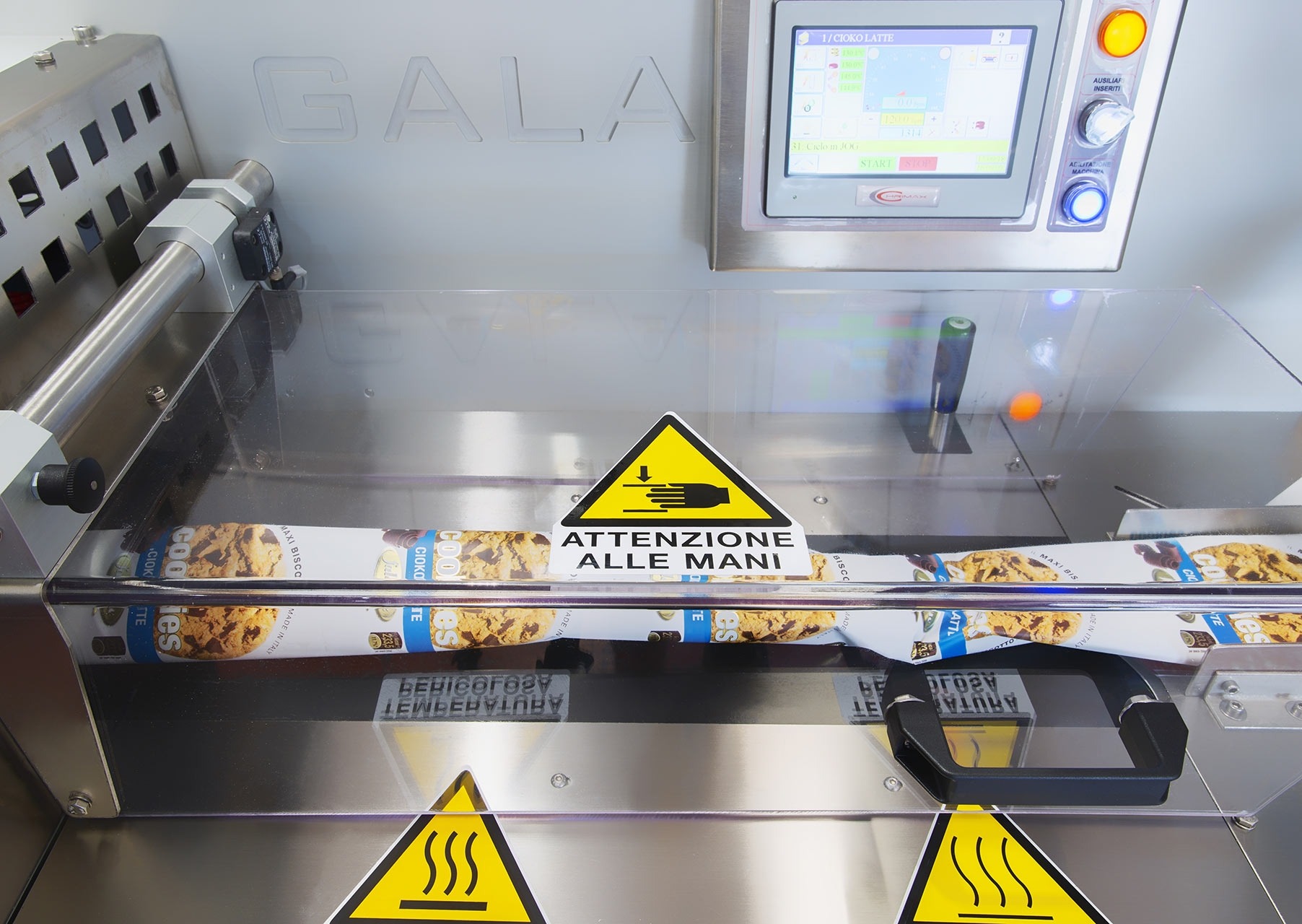

• Color touch screen interface
• Rotary cutting/sealing function
• Packing speed: 30m sealing/min
• Built-in charger, with product-controlled operation
• 4 pairs of sealing wheels (1 cold for film feeding, 2 heated for sealing, 1 for folding flaps)
• Single axis reel seat
• Mold centering sensor
• Possibility of cold sealing packages

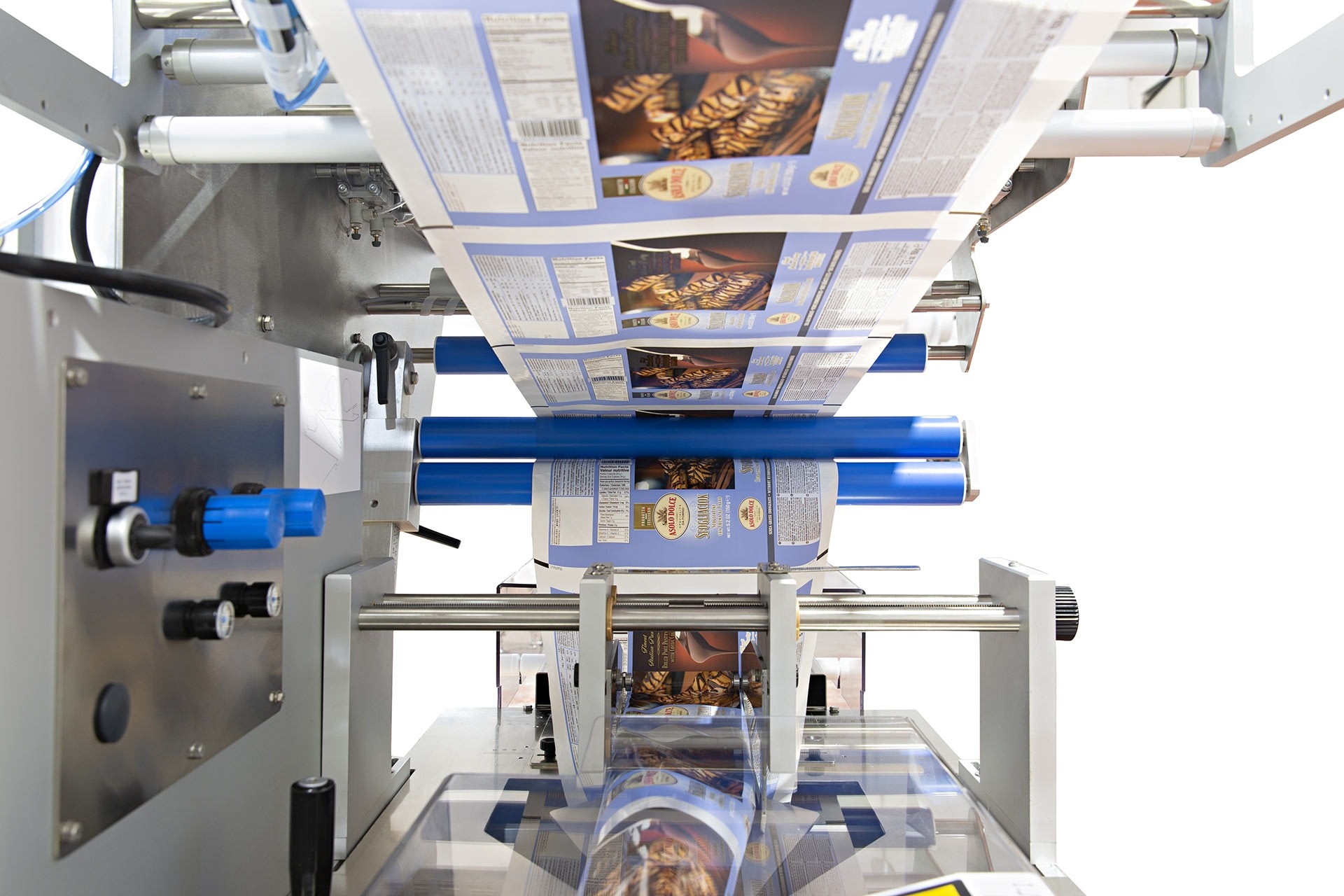

• Stainless steel fixed forming tunnel
• Exit belt in FDA GRADE material, with independent motorization
• Lexan guards that can be opened with safety sensors
• Aspiration of air in the package
• Predisposition for marking and labeling devices
• Compatible Films: All heat sealable and machinable films, such as polypropylene, lightweight coupled film, cold seal.

Types of packages

• Standard pillow bags
• Pillow bags with side closure
• Pillow bags with Euroslot
• Pillow bags with zipper closure
• Gusset bags
• Gusset bags with side sealing
• Bags with gusset and zipper closure
• Easy-open gusseted bags
• Easy Open and Euroslot gusseted bags

Optional

• Gas blower nozzle
• Micrometric dosage of liquids (alcohol, anti-mold)
• Double reel support
• Double coil support with semi-automatic coil change system on the fly without the need to slow down the machine.
• Extendable reel holder
• Reel support Useful length 700 diameter 380
• Stainless steel roller conveyor
• Universal formwork tunnel
• No product, no bag function
• Molding unit
• Side blower for bags with gusset
• Interior air conditioning of the machine
• Euroslots
• Machine base on wheels
• Treatment of aluminum parts with FDA nanotechnological ceramic coating (EVO CPC), non-stick and corrosion-resistant, which also provides a long-lasting self-cleaning effect and reduces maintenance costs
• Stainless steel treatment with nanotechnological coating (EVO G&S), for greater resistance to wear and protection against stains. Protects against water, oil, acids, humidity, mold, etc., while providing a long-lasting self-cleaning effect and reducing maintenance costs.
• Remote support. The router allows you to check parameters, identify malfunctions and perform remote interventions.

AVAILABLE MODELS

• Gala Single-Dose: indicated for packaging small products and for use in environments with limited space.
• Gala LD MAP: Equipped with a Long Dwell cutting/sealing unit for high-speed processing and airtight package sealing. Indoor gas blower nozzle.
• Gala SAN: sanitizable version. Structure and parts in contact with the product in stainless steel, and product loading exit belt with quick release function to facilitate cleaning and replacement of the belt. Aluminum parts treated with a nanotechnological ceramic coating (EVO CPC).

Technical sheet

Standard machine:

• 7″ touch screen interface Ethernet + USB port PT070-WST4B-F1R1
• Weight 800 kg
• Cutting/sealing functionality with rotary sealers. Maximum rotation and power. 220 mm, maximum sealant dimensions 350 mm x 32 mm thickness. Motor SD1261/CAN.331- 45-135VDC + variator 450 1800 / motovario reducer NMRV050 i=10 – F.&14, flange 120 mm
• Cartridge resistors L350 D 15 220V 700W
• Type J thermocouple probes

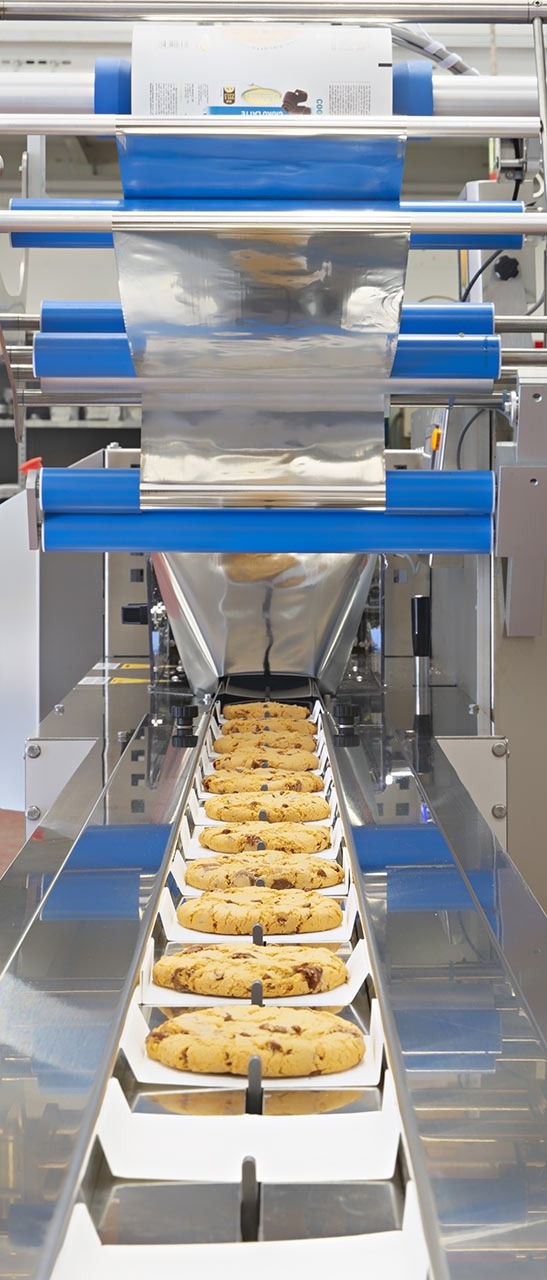

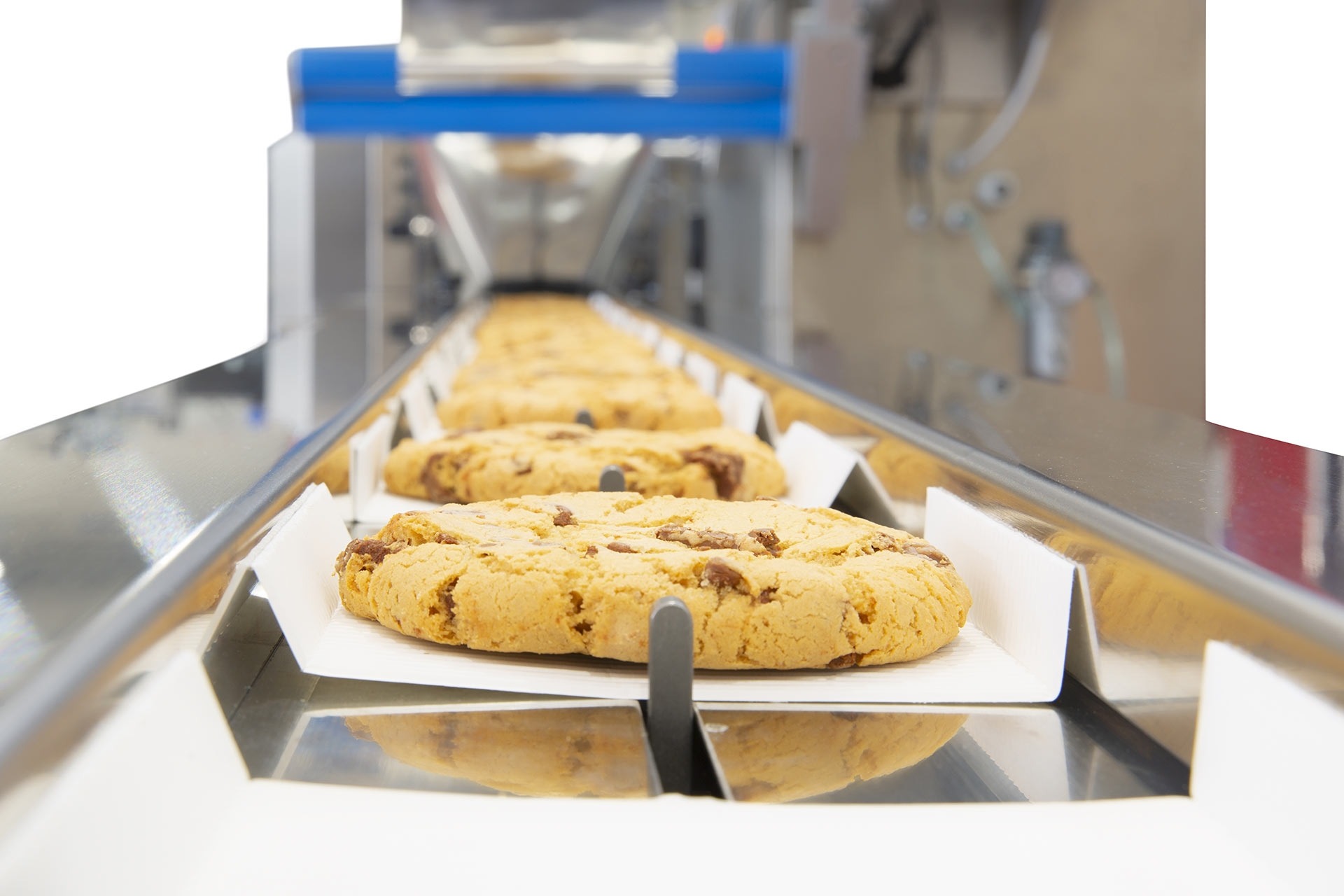

• Automatic loader: aluminum structure. Protective panels and side guides in stainless steel. Length 1550, FDA GRADE product advancement and release materials, equipped with product retention system with CL40HS channel vacuum pump. Motor SD1261/CAN.331- 45-135VDC + variator 450 1800/motovario reducer NMRV050 i=10 – F.&14, flange 120 mm. Product presence sensor SICK/Datalogic/Pepperl+Fuchs
• 4 pairs of sealing wheels, one of which is heated with 350W 110V resistors (Omega). Motor SD1261/CAN.331- 45-135VDC + variator 450 1800 / motovario reducer NMRV050 i=10
• Automatic opening of the heat sealing wheel
• Single axis coil holder, useful width 600mm, with simple coil replacement system, independent motorization NMRV040 i=15 + 0.37kw motor
• Fixed stainless steel forming tunnel
• 1000 mm long exit belt in FDA GRADE material, with independent motorization by drum motor mod. 80LP RL 280 EL 286 speed 0.59 m/s IP66

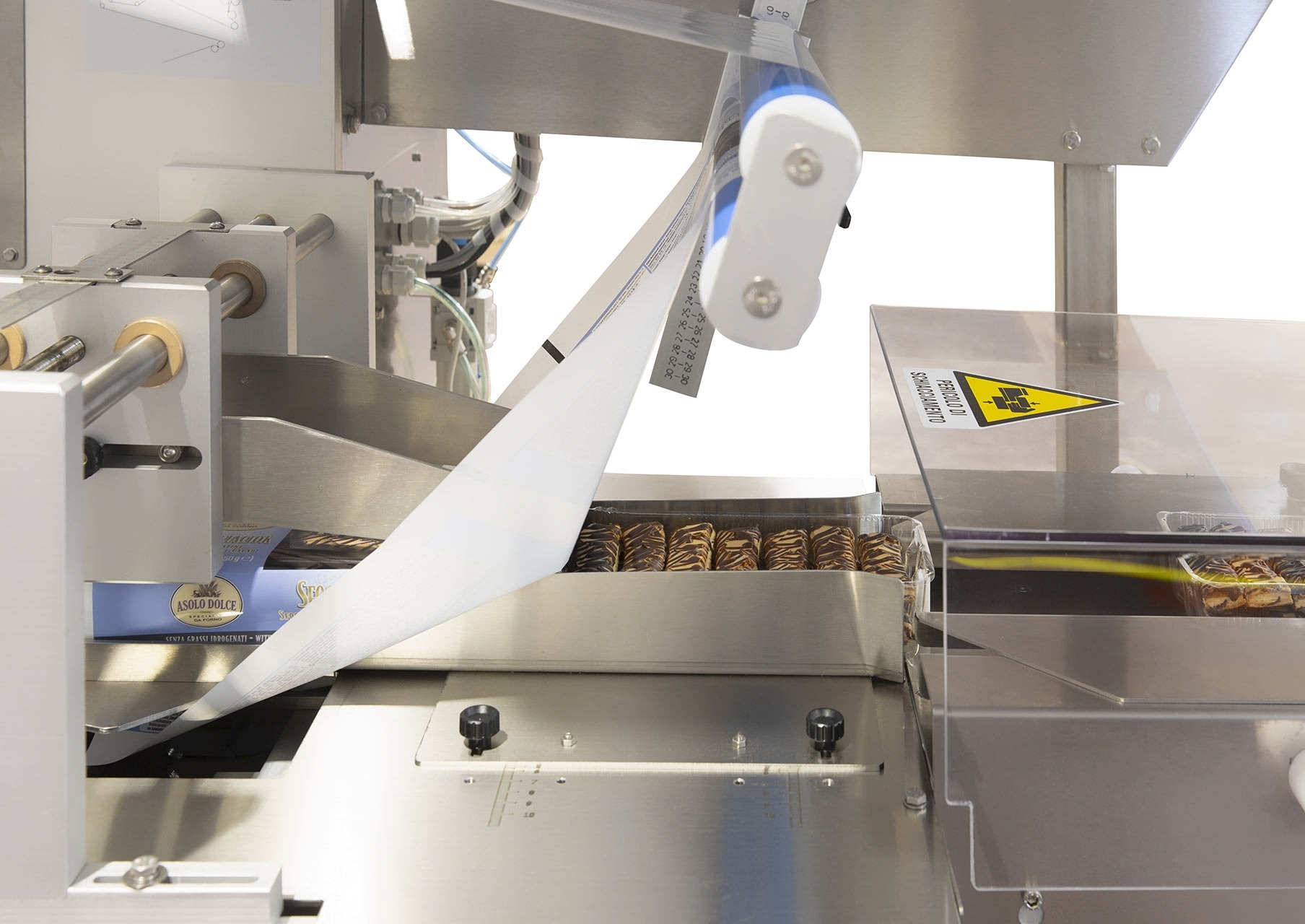

• Practical protectors for product protection at the entrance and exit of the cutting/sealing unit, with stainless steel frame and Lexan tunnel, equipped with safety sensor
• Channel vacuum pump mod. CL40HS to remove excess air from packages before sealing.
• SICK/Datalogic/Pepperl+Fuchs mold centering sensor
• Power supply: 400 + Neutral – 50Hz
• Consumption: 8 Amps – 6 Bar (continuous)
• Automatic opening of the sealing wheels
• Standard reel dimensions: width 600 mm, diameter 380 mm
• CMZ electronic and motor components
• Camozzi pneumatic components
• NGI anti-vibration support feet in stainless steel
