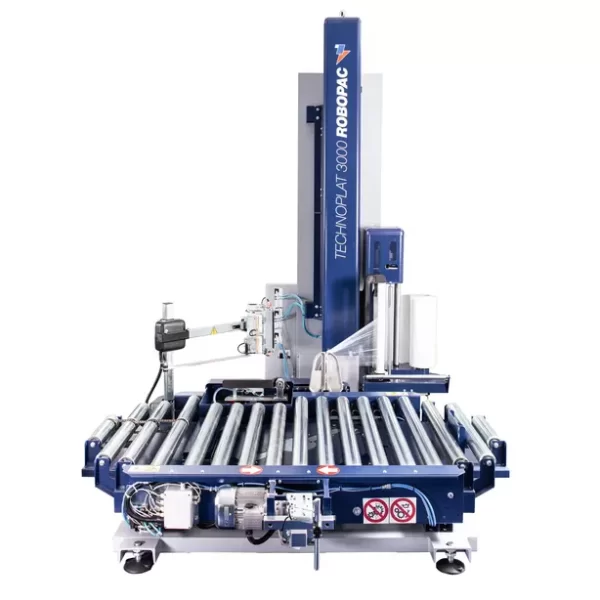

Technoplat 3000 is a high-performance automatic wrapping station in the field of end-of-line packaging. The design, the choice of materials and the implementation of software dedicated to putting this baler online have followed rigorous quality and safety standards. The rigidity of the structure, together with the resistance and reliability of the rotating parts and the respective control and command kinematics, guarantee great efficiency and operating duration even in the most difficult working conditions. Technoplat 3000 is the ROBOPAC answer to all the demands of industrial production.
THANKS TO THE NEW INTUITIVE COLOR INTERFACE
| Roller length Lr | mm | 1100 std. 1300 opt. |
| Table diameter | mm | 2130 (Lr=1100), 2200 (Lr=1300) |
| Maximum capacity | kg | 1500 |
| Table rotation speed | rpm | 5÷15 |
| Car up-down speed | m/min | 2.5÷7 |
| Maximum pallet dimensions (LxW) | mm | 1200×1000 (Lr=1100), 1200×1200 (Lr=1300) |
| Maximum product height | mm | 2200 std. 2400/2800/3100 opt. |
| Working height | mm | 400÷550 |
| Cart type | PGS, PVS | |
| Film tensioner | adjustable from the panel | |
| Pre-stretched film | up to 200% std (PDS), variable 100-300% (PVS) | |
| Fork placement | lateral | |
| Supply voltage | V | 400 V 3Ph + PE |
| Power frequency | Hz | 50/60 |
| Installed power | kW | 3.5 (PGS) 3.9 (PVS) |
| Maximum coil dimensions | mm | 500×300 std / 750×300 opt. |
| Maximum coil weight | kg | 20 |
| Film thickness | μm | 17÷35 |
