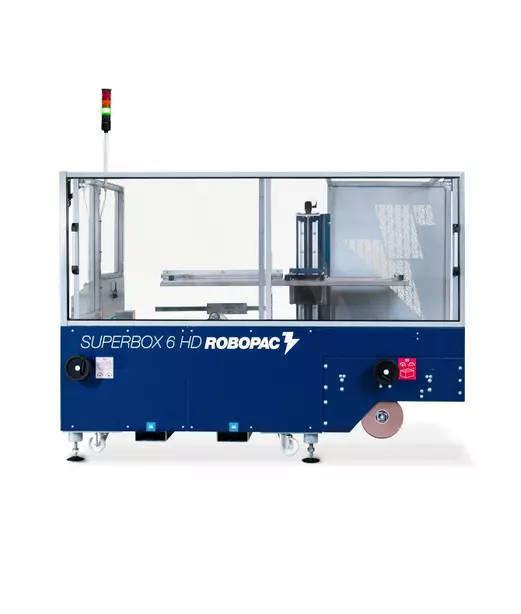

Robopac introduces an automatic carton forming machine with high performance and long service life. Superbox’s new forming machine retrieves cardboard blanks, opens, folds and forms the boxes and then seals the bottom with adhesive tape.
Thanks to the small dimensions and high productivity, up to 720 boxes/h
With the new intuitive color graphic display
Thanks to handwheel adjustments that guarantee precision and repeatability
Thanks to the quality of the materials adopted and the safety devices that protect the operator from any risk
| Warehouse capacity | 50-60 std. 100-120 opt. | |
| Height of motorized side guide tapes | mm | 50 |
| Box drag speed | m/min | 22 |
| Adhesive tape width | mm | 50 – 75 |
| Lower taping head | opt | |
| Minimum box dimensions (LxWxH) | mm | 200x170x100 |
| Maximum box dimensions (LxWxH) | mm | 600x410x500 |
| Supply voltage | V | 400 V 3 Ph + N + PE |
| Power frequency | Hz | 50 |
| Installed power | kW | 0.6 (0.8 with cardboard magazine) |
| Compressed air consumption | Nl/min | 350 |
| Working pressure | bar | 5 |
