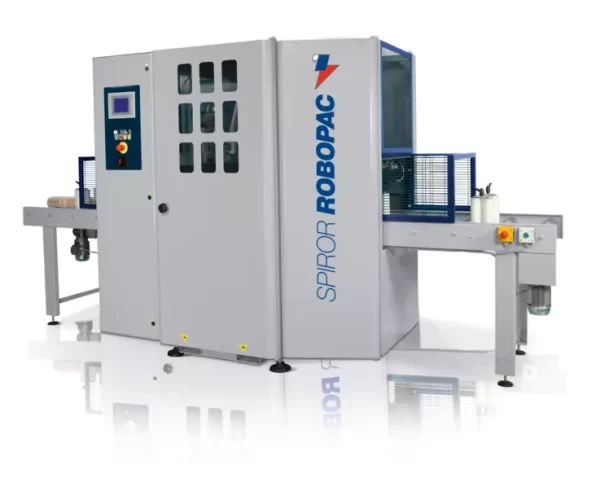

Spiror HP

The machines of the Spiror family are placed at the highest levels with respect to spiral wrapping of products with stretch film. This line of rotating ring machines offers high performance both with respect to product production and durability. The Spiror range, manufactured according to the very high levels of quality and production, is also made up of the 300, 400, 600 and 900 machines. The applications of these ROBOPAC machines are endless and the breadth of options that can be selected is another of its main characteristics.

BENEFITS
OF THE PRODUCTS

Market leading speed

Ideal for inserting online

Custom solutions available

Easy-to-use operation panel with touch screen

Use with stretch film, polyethylene reels, paper reels and adhesive tape (LDPE, LLDPE, PVC)

Ring diameter mm 300
Coil width (W) mm 125-250
Ring rotation speed rpm max 260
Forward speed m/min 18÷58
Clamp and cutting group std
Group of pneumatic presses at inlet and outlet std
Supply voltage V 230 V 3Ph / 400 V 3Ph + N
Power frequency Hz 50/60
Installed power kW 2,3
Absorbed current A 11
Compressed air consumption Nl/min 20
Working pressure bar 6±1
