SH45

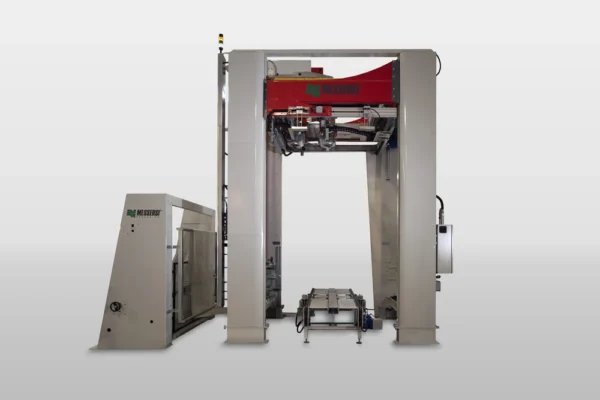

The SH45 automatic shrink wrapping machine is a combined machine which, using a single work station, performs the hooding and heat-shrinking operations of the product to be packaged. The SH45 automatic machine uses a reel of shrink film in tubular form equipped with side bellows. In the different versions, up to three film reels can be reached. The film is heat-shrunk on the product by means of a gas-fired ring oven; all functions are controlled by a PLC that manages the automatic and manual operations.

Suitable film Shrinkable polyethylene
Film thickness 80 -200 micron
Electric voltage 400 V three-phase – 50 Hz
Installed electrical power 7.5 kW
Total thermal power 300 kW ca.
Gas operation Methane or Propane-LPG
Gas line pressure 0.5 Bar
Gas line flow rate 20 m3/h
Gas consumption 0.20/0.25 m3/cycle ca.
Noise < 80 dB(A) according to ISO 11202

QUOTE EQUIPMENT
