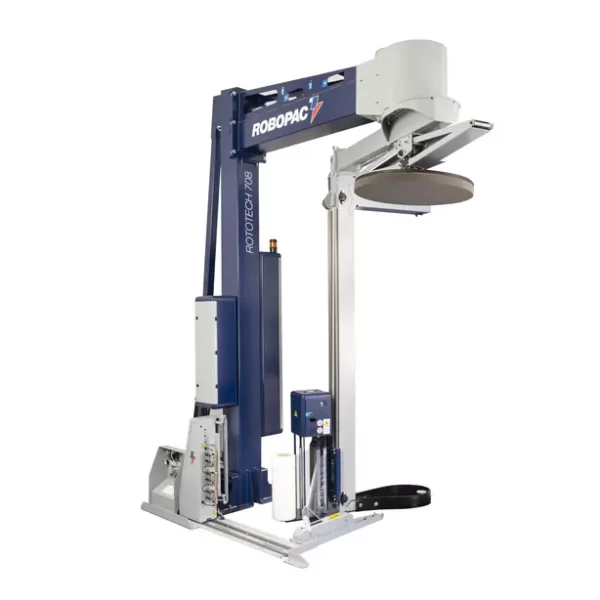

Rototech is the ideal solution for fully automatically wrapping particularly unstable products with stretch film. The possibility of keeping the pallet stationary or the products stable by rotating a rotating arm frequently is a necessity in the industrial field. The Rotary family is proposed as a superior quality product in an important technological field for end-of-line packaging. This machine has excellent technical and manufacturing characteristics and is the ideal choice to perform pallet wrapping reliably and efficiently.
Arm rotation speed | rpm | 7÷12 |
Car up-down speed | m/min | 2.5÷5.5 |
Maximum pallet dimensions (LxW) | mm | 1400×1400 |
Minimum feasible dimensions (LxW) | mm | 800×600 |
Maximum product height | mm | 2000 std. 2400/2750 opt. |
Cart type | FR, PDS, PVS | |
Film tensioner | adjustable from the panel | |
Pre-stretched film | n.a. (FR), fixed 250% std. (PDS), variable 150-400% (PVS) | |
Supply voltage | V | 230V 1Ph |
Power frequency | Hz | 50/60 |
Maximum coil dimensions | mm | 500×300 std. / 750×300 opt. |
Maximum coil weight | kg | 20 |
Film thickness | μm | 17÷35 |
