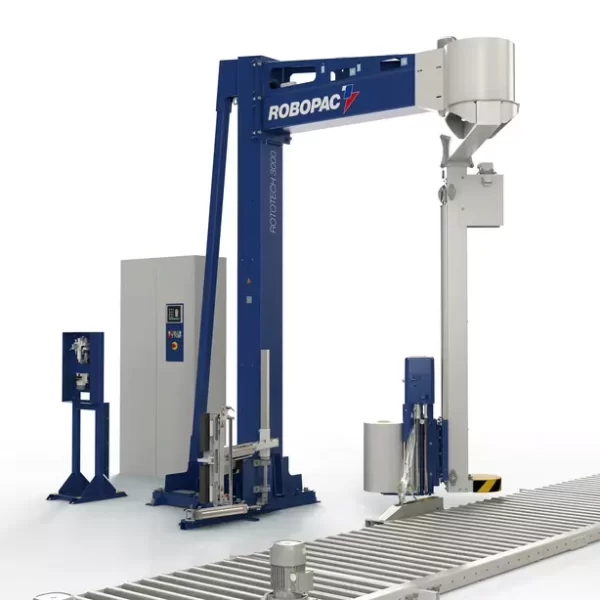

Rototech is the ideal solution for fully automatically wrapping particularly unstable products with stretch film.
FOR ALL WORK DEMANDS
WORK LINE HEIGHT FROM H:85 mm TO H:750 mm
| Maximum capacity | kg | 1500 |
| Arm rotation speed | rpm | 7÷15 |
| Car up-down speed | m/min | 2.5÷7.2 |
| Maximum pallet dimensions (LxW) | mm | 1750×1000 (W with roller conveyors=1100 mm) / 1650×1200 (W with roller conveyors=1300 mm) |
| Maximum product height | mm | 2000 std. 2400/2750 opt. |
| Cart type | PGS, PVS | |
| Film tensioner | adjustable from the panel | |
| Pre-stretched film | fixed 250% std. (PGS), variable 150-400% (PVS) | |
| Supply voltage | V | 400 3Ph + N + PE |
| Power frequency | Hz | 50/60 |
| Maximum coil dimensions | mm | 500×300 |
| Maximum coil weight | kg | 20 |
| Film thickness | μm | 17÷35 |
| Compressed air consumption | Nl/min | 300 |
| Working pressure | bar | 6 |
