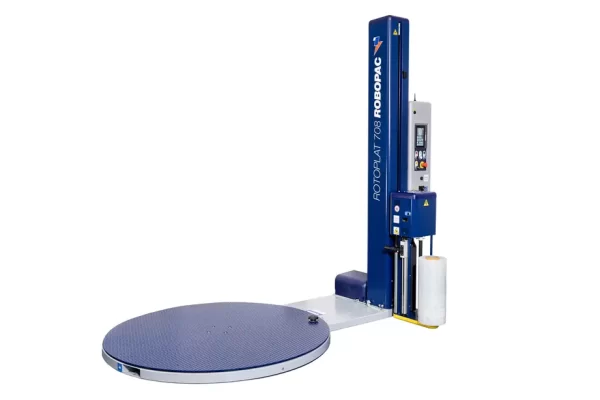

Rotoplat is a series of flexible rotary table wrapping machines for vertical stretch film wrapping products available in different configurations to meet your needs.
designed for loading with manual pallet trucks
Thanks to the new base it can be installed for 3 different charging lines
equipped with new ramp with safety photocell
| Table diameter | mm | 1650 std. 1800 opt. |
| Maximum capacity | kg | 2000 std. 2500 opt. |
| Table rotation speed | rpm | 5÷12 |
| Car up-down speed | m/min | 1.5÷5.5 |
| Maximum pallet dimensions (LxW) | mm | 1000×1200 std. 1200×1200 opt. |
| Maximum product height | mm | 2200 std. 2400/2800/3100 opt. |
| Cart type | FR, PDS, PVS | |
| Film tensioner | adjustable from the panel | |
| Pre-stretched film | n.a. (FR), fixed 250% std (PDS), variable 150-400% (PVS) | |
| Fork placement | front and rear | |
| Supply voltage | V | 230V 1Ph |
| Power frequency | Hz | 50/60 |
| Installed power | kW | 1.5 (FR) / 1.9 (PDS) / 2.4 (PVS) |
| Maximum coil dimensions | mm | 500×300 |
| Maximum coil weight | kg | 20 |
| Film thickness | μm | 17÷35 |
