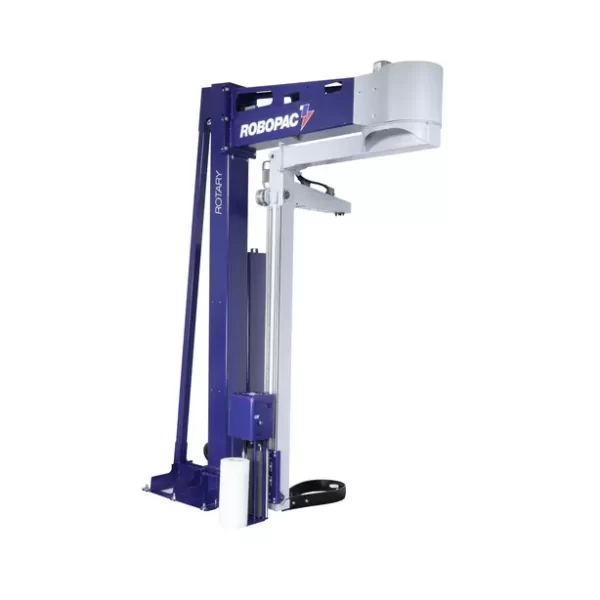

Rotary

Rotary is the ideal solution for stretch film wrapping particularly unstable products. The possibility of keeping the pallet stationary or the products stable by rotating a rotating arm frequently is a necessity in the industrial field. The Rotary family is proposed as a superior quality product in an important technological field for end-of-line packaging. This machine has excellent technical and manufacturing characteristics and is the ideal choice to perform pallet wrapping reliably and efficiently.

BENEFITS
OF THE PRODUCTS

7” COLOR TOUCH SCREEN WITH MULTILEVEL CONTROL

WALL SETUP

UNSTABLE AND/OR IRREGULAR PALLETS

IDEAL FOR LOGISTICS

POSSIBILITY OF WRAPPING PALLETS UP TO 1400x1400 mm

ADJUSTABLE ROTARY ARM ACCORDING TO THE DIMENSIONS OF THE PALLET

Arm rotation speed rpm 7÷12
Car up-down speed m/min 2.5÷5.5
Maximum pallet dimensions (LxW) mm 1400×1400
Maximum product height mm 2000 std. 2400/2750 opt.
Cart type FR, PDS, PVS
Film tensioner adjustable from the panel
Pre-stretched film n.a. (FR), fixed 250% std. (PDS), variable 150-400% (PVS)
Supply voltage V 230V 1Ph
Power frequency Hz 50/60
Maximum coil dimensions mm 500×300 std. / 750×300 opt.
Maximum coil weight kg 20
Film thickness μm 17÷35
