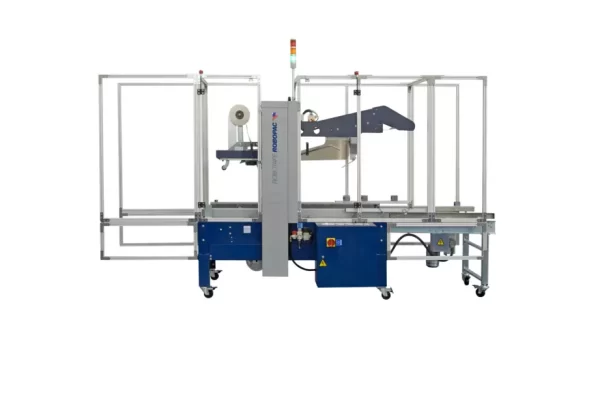

Self-sizing side-pull sealing machine with device for automatic folding of the upper flaps
| Height of motorized side guide tapes | mm | 50 std. 75 opt. |
| Box drag speed | m/min | 24 |
| Adhesive tape width | mm | 50 – 75 |
| N. 2 taping heads (upper and lower) | opt | |
| Minimum box dimensions (LxWxH) | mm | 150x110x110 |
| Maximum box dimensions (LxWxH) | mm | 650x500x500 |
| Minimum box weight | kg | 1 |
| Maximum box weight | kg | 50 |
| Supply voltage | V | 400 V 3 Ph + N +Pe |
| Power frequency | Hz | 50 |
| Installed power | kW | 0.4 |
| Compressed air consumption | Nl/min | 50 |
| Working pressure | bar | 6±1 |
Prasmatic TC 500 600 The new range of wrappers and cartoners
