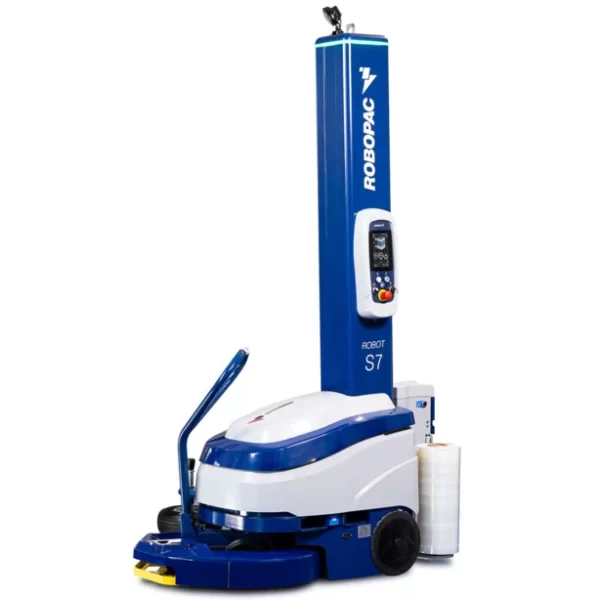

Robot S7 Stop & Go

Thanks to the experience gained over time, Robopac presents the new range of self-propelled packaging machines, Robot S7 Stop&Go. The use of advanced technology and maximum attention to safety systems represent the essence of Robopac’s development capacity and provide great packaging autonomy and great work flexibility. The machine is built to wrap and stabilize palletized loads of any shape, size and weight using stretch film. Thanks to the laser scanner sensor, the machine stops instantly when an obstacle is within the safety zone. When the sensor stops detecting the presence of the obstacle, the machine automatically restarts. This eliminates any possibility of contact with the operator.

BENEFITS
OF THE PRODUCTS

PERFORMANCE

The best load stabilization with the lowest film consumption, thanks to the new Cube Technology powered by brushless motors

Usability

Smart and easy to use thanks to new HMI and easy film insertion thanks to new film carriage design

SUSTAINABILITY

The lowest energy and film consumption on the market thanks to the lithium battery and Cube technology

EFFICIENCY

Thanks to the film control with brushless motors and the new higher performance carts.

CONNECTIVITY

thanks to the possibility of installing the R-Connect system (Industry 4.0)

Batteries N°2 12 V 110 Ah Pb/Acid (std.) N°1 24 V 50 Ah Lithium (opt.)
Number of platforms per battery charge >300 (Pb/Acid)
Rotation speed m/min 35÷80
Car up-down speed m/min 1.5 ÷ 5
Minimum feasible dimensions (LxW) mm 600×600
Maximum product height mm 2200 std. 2400/2800/3100* opt.
Cart type P3GS, PVS
Film tensioner manual (FRD) Adjustable from the panel (FR, P3GS, PVS)
Pre-stretched film n.a. (FRD, FR) 0% – 230% – 300% (std.) 0% – 150% – 250% (opt.) (P3GS) variable 0-500% (PVS)
Supply voltage V 100-240 1Ph
Power frequency Hz 50/60
Installed power kW 0.5 (Pb/Acid) / 0.8 (Lithium)
Maximum coil dimensions mm 500×300
Maximum coil weight kg 20
Film thickness μm 17÷35

*H=3100 mm only with P3GS and PVS motorized carts
