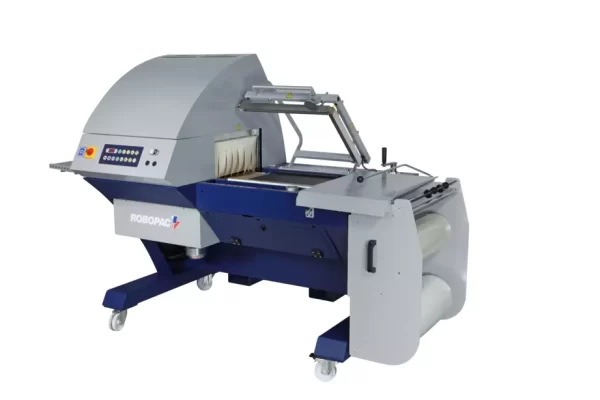

Heat shrinking machine that combines excellent performance and simplicity of use for low and medium production of items from the most diverse product categories. The compactness of the machine and its reliability make it a focused and appreciated product.
| Production capacity | products/h | 600* |
| Welding bar dimensions (LxW) | mm | 500×400 |
| Variable speed welding conveyor | m/min | 0÷43 |
| Tunnel entrance dimensions | mm | 385×190 |
| Minimum product dimensions (LxWxH) | mm | 50x50x10 |
| Maximum product dimensions (LxWxH) | mm | 450x350x190** |
| Maximum product weight | kg | 8 |
| Supply voltage | V | 400 V 3Ph + N + Pe |
| Power frequency | Hz | 50/60 |
| Installed power | kW | 5.7 |
| Maximum coil dimensions | mm | L=500 Ø=300 |
| Maximum coil weight | kg | 31 |
| Polyethylene film thickness | μm | 15÷35 |
| Compressed air consumption | Nl/cycle | n.a. |
| Working pressure | bar | n.a. |
*The indicated productivity may vary depending on the size of the product, the format of the package and the type of film used.
**Maximum dimensions cannot be made simultaneously
