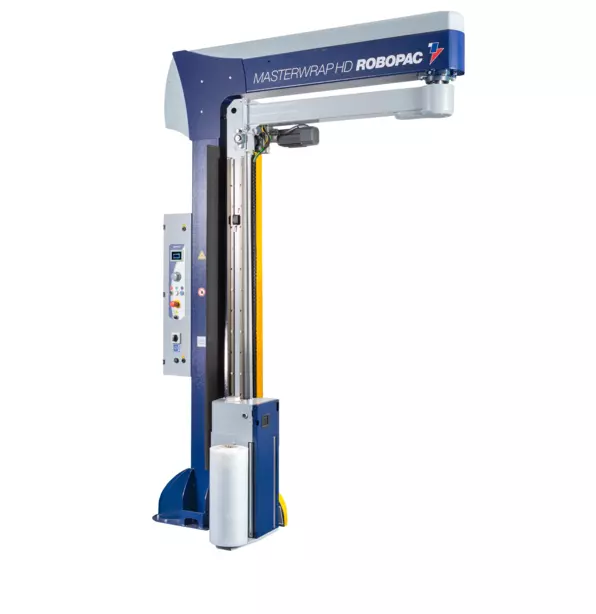

Masterwrap HD Plus XL is Robopac’s new semi-automatic swing arm wrapping machine. It can be used with coils of up to 20 kg, it is characterized by a particularly robust and reliable structure, which makes it ideal for operations with unstable and/or irregular pallets.
With coils up to 20 kg
Thanks to the intuitive color interface and the innovative simplified film introduction system
Three cars available: FRD, FR and the new PGS
Possibility of installing the R-Connect system
| Arm rotation speed | rpm | 7÷11 |
| Car up-down speed | m/min | 2,6÷6 |
| Maximum pallet dimensions (LxW) | mm | 1200×1200 |
| Maximum product height | mm | 2000 std. 2400 opt. |
| Cart type | FRD, FR, PGS | |
| Film tensioner | manual (FRD), adjustable from the panel (FR, PGS) | |
| Pre-stretched film | n.a. (FRD, FR), fixed 250% std. (PGS) | |
| Supply voltage | V | 230V 1Ph |
| Power frequency | Hz | 50/60 |
| Maximum coil dimensions | mm | 500×300 |
| Maximum coil weight | kg | 20 |
| Film thickness | μm | 7÷35 |
