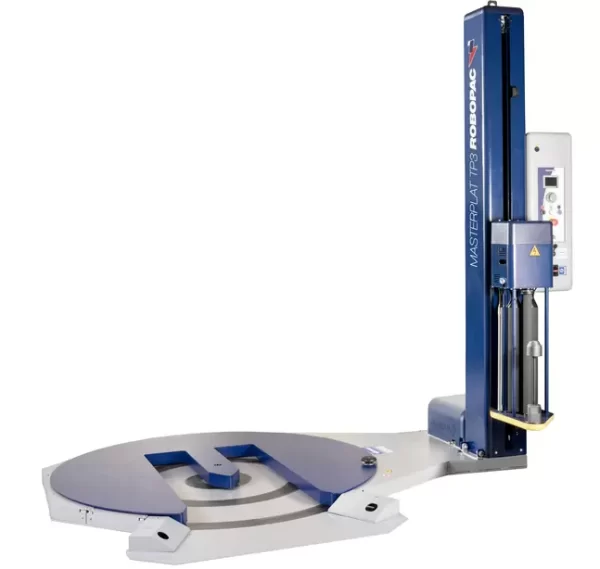

Masterplat Plus TP3 is a rotary table machine for packaging vertical stretch film products. Thanks to the TP3 base, designed for loading with pallet trucks, it is possible to change the loading side by choosing 3 different configurations according to the customer’s needs.
| Table diameter | mm | 1500 std. 1650/1800 opt. |
| Maximum capacity | kg | 1200 std. 1500 opt. |
| Table rotation speed | rpm | 5÷12 |
| Car up-down speed | m/min | 1,4÷4 |
| Maximum pallet dimensions (LxW) | mm | 800×1200 std. 1000×1200 / 1200×1200 opt. |
| Maximum product height | mm | 2200 std. 2400/2800/3100 opt. |
| Cart type | FRD, PGS | |
| Film tensioner | manuale (FRD), adjustable from the panel (PGS) | |
| Pre-stretched film | n.a. (FRD), up to 250% std. (PGS) | |
| Fork placement | rear | |
| Supply voltage | V | 230V 1Ph |
| Power frequency | Hz | 50/60 |
| Installed power | kW | 1.5 (FRD) / 1.9 (PGS) |
| Maximum coil dimensions | mm | 500×300 |
| Maximum coil weight | kg | 20 |
| Film thickness | μm | 17÷35 |
