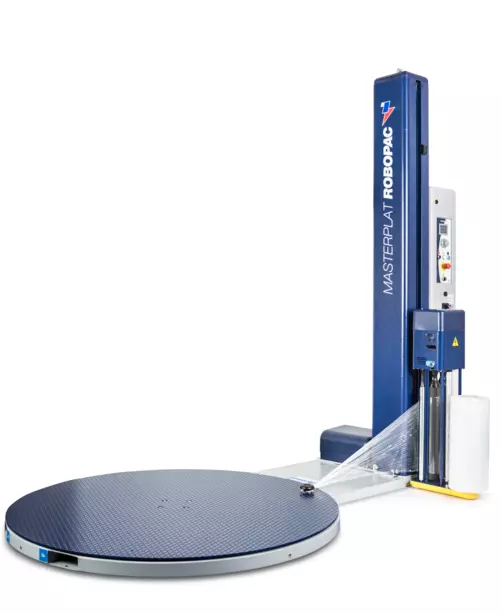

Masterplat Plus

Masterplat is born from the union between the ease of use of Ecoplat and the high performance of Rotoplat. Thanks to our extensive experience in the field of packaging, we have expanded the range of tables by introducing a high-performance industrial product, which combines the possibility of protecting the product and saving film thanks to the standard pre-stretching of Masterplat PGS. Masterplat is the ideal solution for those who need high-level performance without sacrificing ease of use, and thanks to the new graphic icon screen and the parameter selection jog it is possible to program the cycles in a simple and intuitive way.

BENEFITS
OF THE PRODUCTS

3.5 inch color graphic display

Thanks to the reduced dimensions of the new ramps

Fixed pre-stretched at 250%

Thanks to the reduced thickness of the base (30 mm)

EXCELLENT COMPROMISE BETWEEN ECONOMIC SAVINGS AND PERFORMANCE

Thanks to the possibility of access from each side

Table diameter mm 1650 std. 1800 opt.
Maximum capacity kg 2000 std. 2500 opt.
Table rotation speed rpm 5÷12
Car up-down speed m/min 1,4÷4
Maximum pallet dimensions (LxW) mm 1000×1200 std. 1200×1200 opt.
Maximum product height mm 2200 std. 2400/2800/3100 opt.
Cart type FRD, PGS
Film tensioner manuale (FRD), adjustable from the panel (PGS)
Pre-stretched film n.a. (FRD), up to 250% std. (PGS)
Fork placement front and rear
Supply voltage V 230V 1Ph
Power frequency Hz 50/60
Installed power kW 1.5 (FRD) / 1.9 (PGS)
Maximum coil dimensions mm 500×300
Maximum coil weight kg 20
Film thickness μm 17÷35

BROCHURE

QUOTE EQUIPMENT

Products
Related

MH3

The Stretch Hooder MH3 automatic hooding machine uses a single workstation for

Ecoplat Plus

Ecoplat Plus is available in two versions, Basic and FRD. The Base

Rotary

Rotary is the ideal solution for stretch film wrapping particularly unstable products.

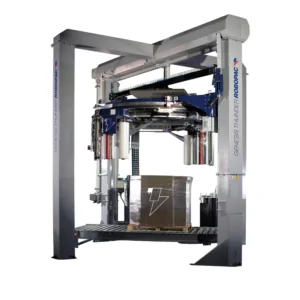

GENESIS THUNDER
