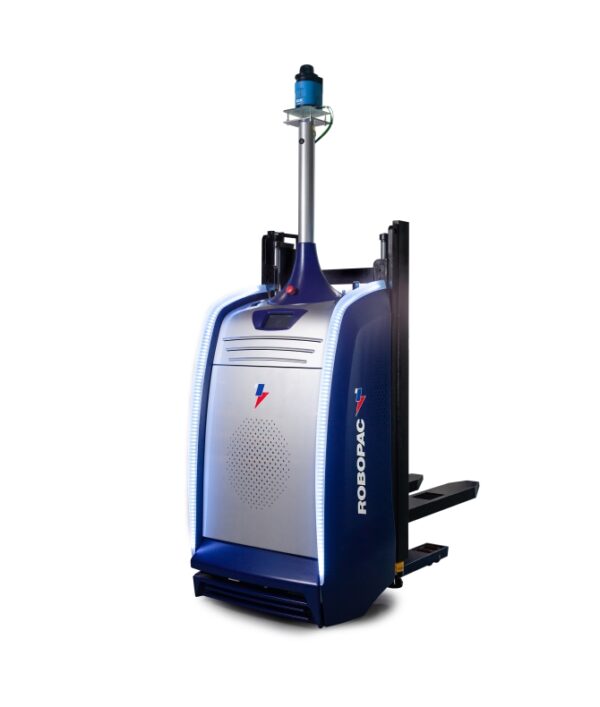

Integra is an automatic laser-guided vehicle with cover forks suitable for moving pallets within the factory. In the low position, the forks cover the rear wheels like an electric pallet truck. Extremely compact and agile machine, Integra can move in a small space, guaranteeing maximum safety. In relation to its small dimensions, the vehicle can move products for loads of up to 1,500 kg.
Thanks to lithium batteries that allow optimal charging cycles and maximum duration
Thanks to AC motors and highly efficient lithium batteries
No physical intervention for successive modifications but only through software
LGV positioning with a maximum error of 10 mm
Completely safe machine thanks to optimized management of the monitoring software
Ideal for working in narrow spaces, INTEGRA can handle loads of up to 1500 kg and up to 675 mm in height
| TECHNICAL CHARACTERISTICS | ||
| Pallet type | mm |
EUR 800×1200 |
| Maximum vehicle speed | mm/s |
1500 |
| Forklift | mm |
250 std (from ground) / 675 opt (from ground) |
| Maximum slope that can be overcome |
5° / 9% |
|
| Maximum step that can be exceeded | mm |
5 |
| Ambient working temperature | °F |
41÷122 |
| Positioning accuracy | mm |
± 5 |
| Side shifting forks |
no |
|
| Maximum capacity | kg |
1500 |
| ELECTRICAL CHARACTERISTICS | ||
| Battery voltage | V |
24 |
| Battery capacity | Ah |
150 |
