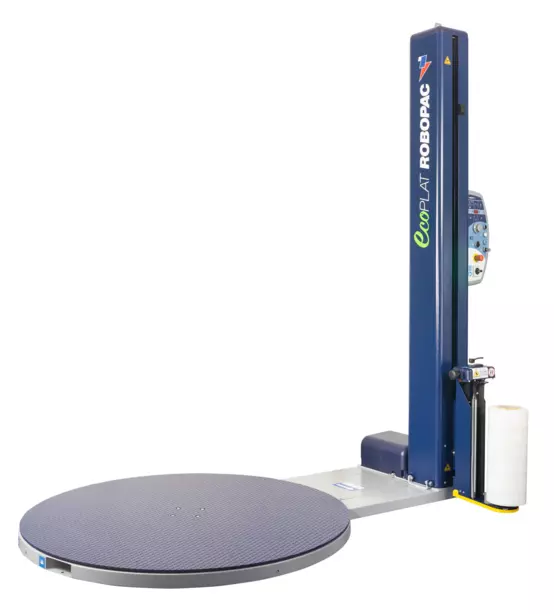

Ecoplat Plus is available in two versions, Basic and FRD. The Base version is equipped with the electromechanical panel with buttons, while the FRD version has a panel with display parameters and LED JOG switch.
| Table diameter | mm | 1500 std. 1650 opt. |
| Maximum capacity | kg | 1200 std. 2000 opt. (BASE), 2000 (FRD) |
| Table rotation speed | rpm | 4÷10 |
| Car up-down speed | m/min | 1,4÷4 |
| Maximum pallet dimensions (LxW) | mm | 800×1200 std. 1000×1200 opt. |
| Maximum product height | mm | 2200 std. 2400 opt. |
| Cart type | FRD | |
| Film tensioner | manual (FRD) | |
| Pre-stretched film | n.a. | |
| Fork placement | front and rear | |
| Supply voltage | V | 230V 1Ph |
| Power frequency | Hz | 50/60 |
| Installed power | kW | 1,2 |
| Maximum coil dimensions | mm | 500×300 |
| Maximum coil weight | kg | 20 |
| Film thickness | μm | 17÷35 |
