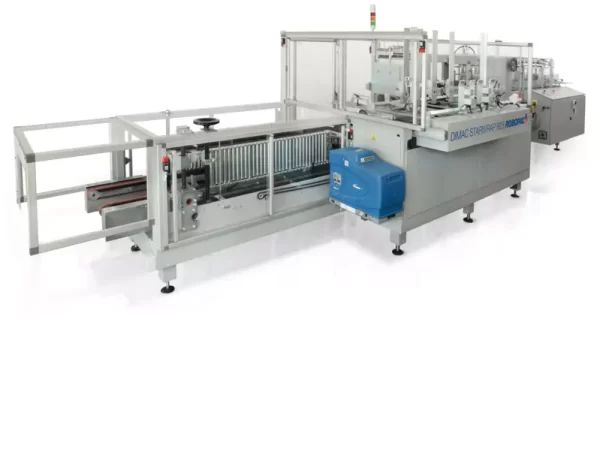

Machine created to be able to form complete cartons from an open plane. The Starwrap is a machine with input and output located on two levels, the cardboard formation takes place by lowering the product through a plate controlled by a mechanical cam.
solidity, reliability, versatility and competitiveness
optimization of format change time
high capacity carton warehouse
carton formation by lowering the product
| MODELS | R25 – 25 PPM | R35 – 35 PPM | |
| overall length A | mm
inches |
6705
260 |
8140
320.5 |
| machine widht
(+main electrical cabinet) B |
mm
inches |
2100
82.7 |
2100
82.7 |
| working height inlet (min-max) | mm
inches |
1015 – 1515
39.9 – 59.6 |
1015 – 1515
39.9 – 59.6 |
| working height outlet (min-max) | mm
inches |
490 – 990
19.3 – 39 |
490 – 990
19.3 – 39 |
| total power | kW | 7 | 7 |
| air consumption | NI/min | 250 | 250 |
| air pressure | bar | 6 | 6 |
