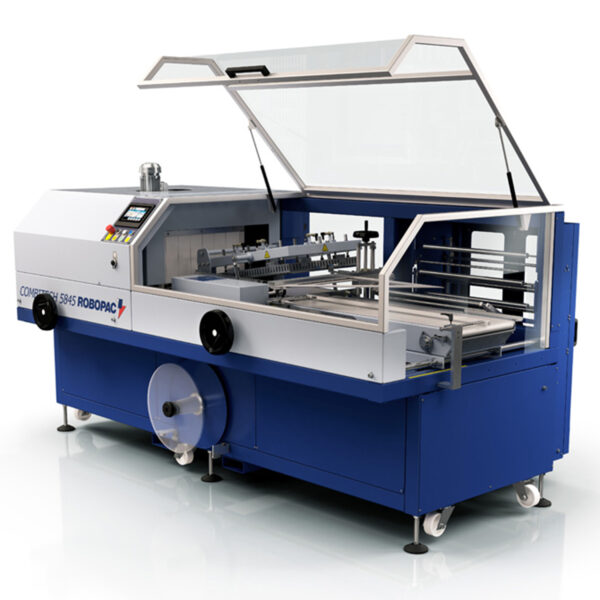

The constant development of the product and the perseverance in the search for the most suitable technical solutions and materials for packaging with heat-shrinkable film have allowed the creation of a machine with important product processing characteristics and great ease of productive adaptation.
Up to 50 products/min
POSSIBILITY OF INSTALLING THE R-CONNECT SYSTEM
THANKS TO THE PERFECT CENTERING OF THE PRODUCT INSIDE THE TUNNEL
Production capacity (p/min): 50
Sealing bar dimensions (L X WIDTH) (mm): 580×450
Web conveyor, film unwinding and pulling speed controlled by independent inverter (m/min): 10-40
Sealing unit with adjustable motion height adjustment: STD
Power (VAC): 400/1ph + N
Working pressure (bar): 6
Air consumption (nl/min): 230
Machine dimensions (L x W x H) (mm): 3050x1636x1447
Minimum dimensions of the product (L x W x H) (mm): 100x30x2 / 50x30x2 OPT
Minimum product weight (Kg): 0.01 0.01
Maximum product dimensions (L x W x H) (mm): 550x380x120
Maximum product weight (Kg): 12
Control: Touch screen with the possibility of storing up to 100 different wrapping cycles
R-Connect 3 Y: OPT
Additional carriers: OPT
