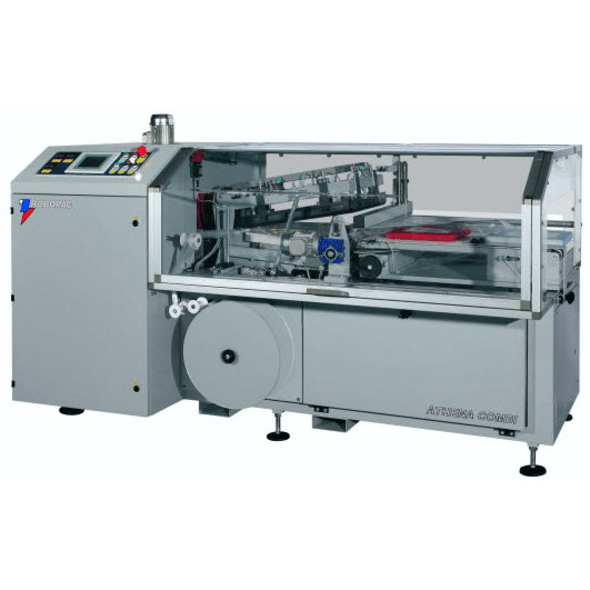

The Athena Combi is characterized by its great versatility in thermoforming, being an automatic machine where precision and excellence speak for themselves.
| Features | 5545 | 6555 |
| Dimensions of the welding bar (L x W) (mm) | 550×450 | 650×550 |
| Maximum product height (mm) | 120 | 250 |
| Min product dimensions (For products larger than 50mm an additional conveyor will be needed) (mm) | 50x20x20 | 50x20x20 |
| Self-centering sealing unit with adjustable height from the control panel | —- | STD |
| Inverter controlled conveyor and belt | 10/40 mt | 10/40 mt |
| Power (VAC) | 400V/3ph +N | 400V/3ph +N |
| Working pressure (bar) | 6 | 6 |
| Air consumption (nl/cycle) | 9.5 | 9.5 |
| Production capacity: packages/min (depending on product dimensions and film specifications) | 30-35 | 25-30 |
| Maximum product weight (kg) | 12 | 12 |
| Machine dimensions (L x W x H) (mm) | 2700x1200x1500 | 3500x1400x1600 |
| Maximum coil dimensions (mm) | 600 | 800 |
Prasmatic TC 500 600 The new range of wrappers and cartoners
